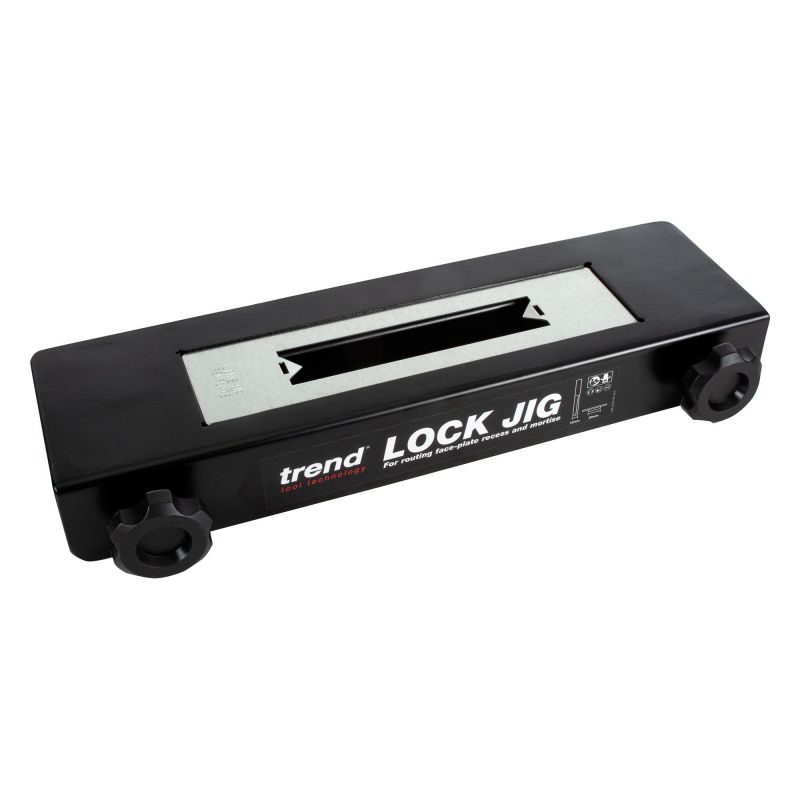

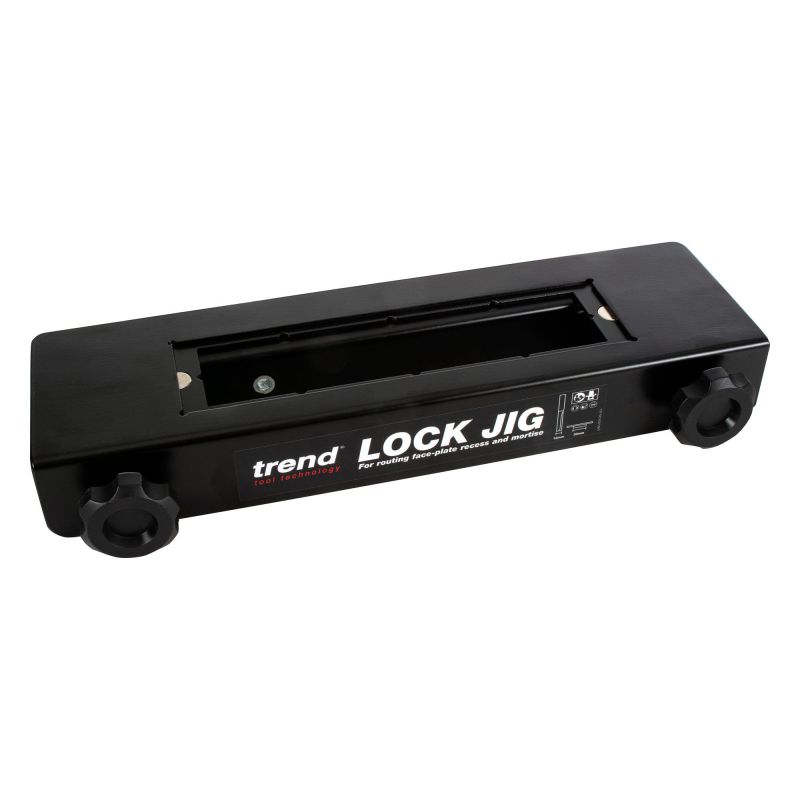

Trend LOCK/JIG/C Lock Jig C

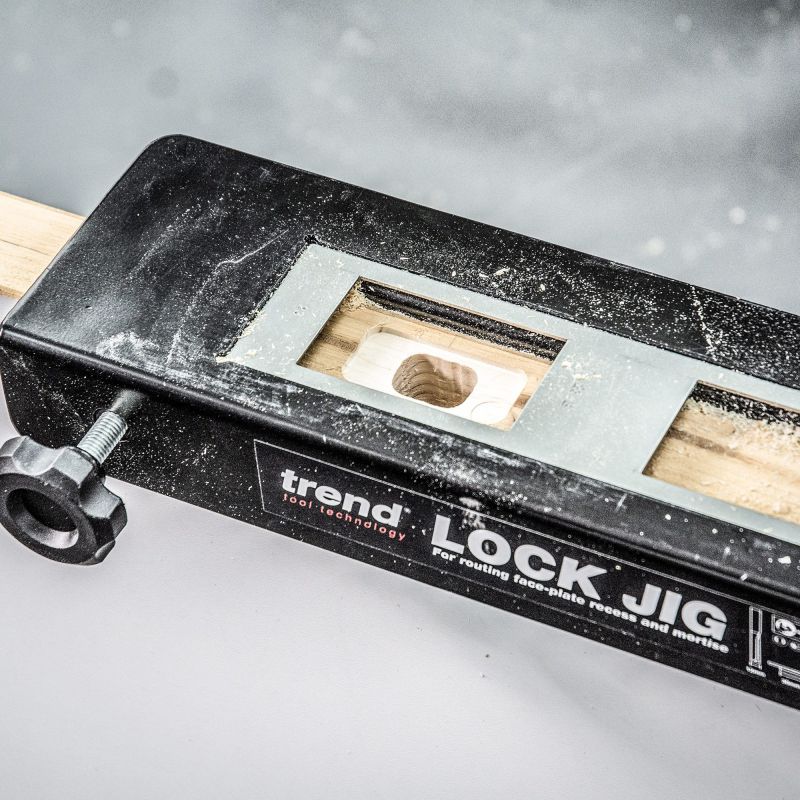

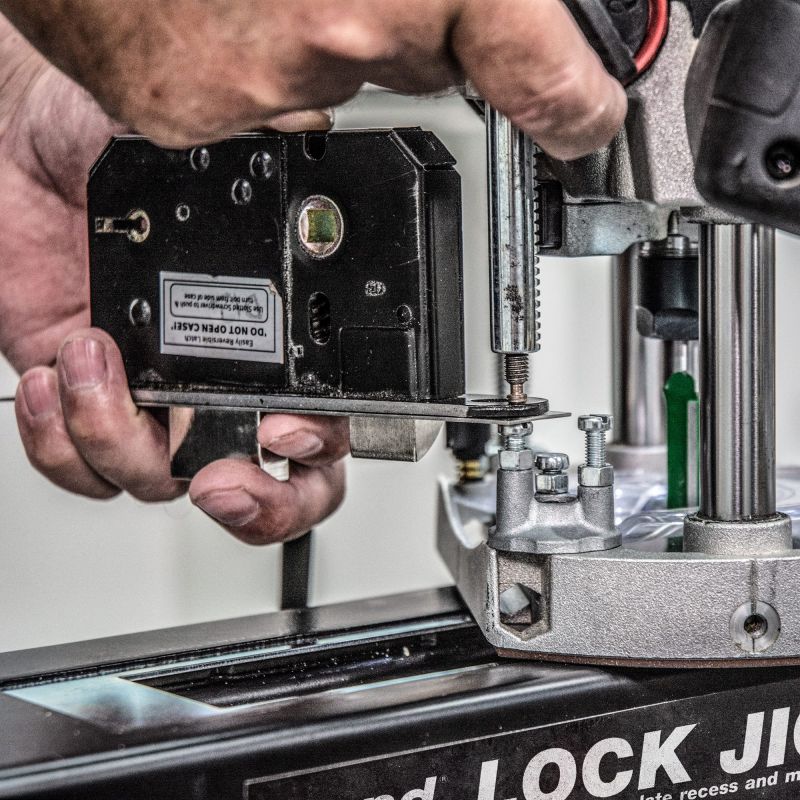

- A site-tough routing jig with interchangeable templates to cut lock & face-plate recesses in timber doors. Steel construction and tool-free setup deliver speed and accuracy. Ideal for all popular mortice sash locks, dead locks and tubular latches from leading ironmongery brands.
- Steel Construction for maximum strength, durability and accuracy.

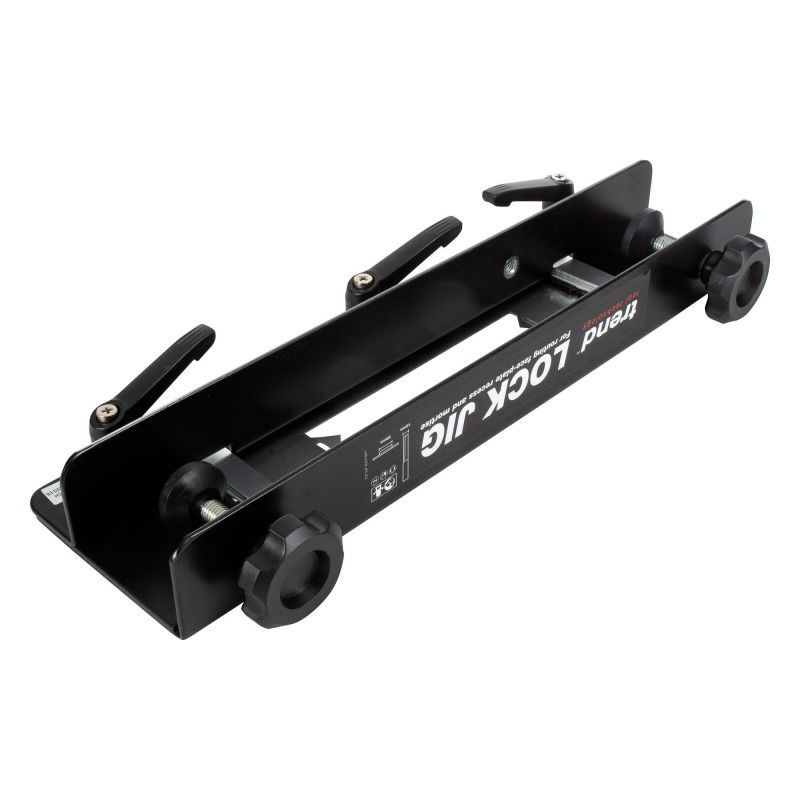

- Full-Length Adjustable Fence to accommodate all doors between 34mm and 58mm thick.

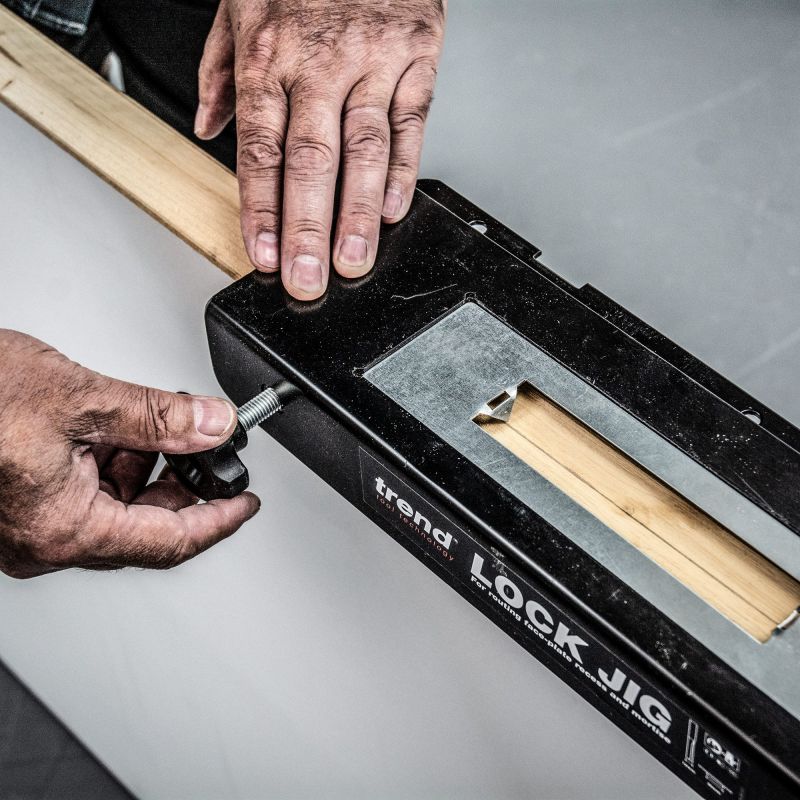

- Quick-Release Clamps with non-marring pads ensure the jig is held securely.

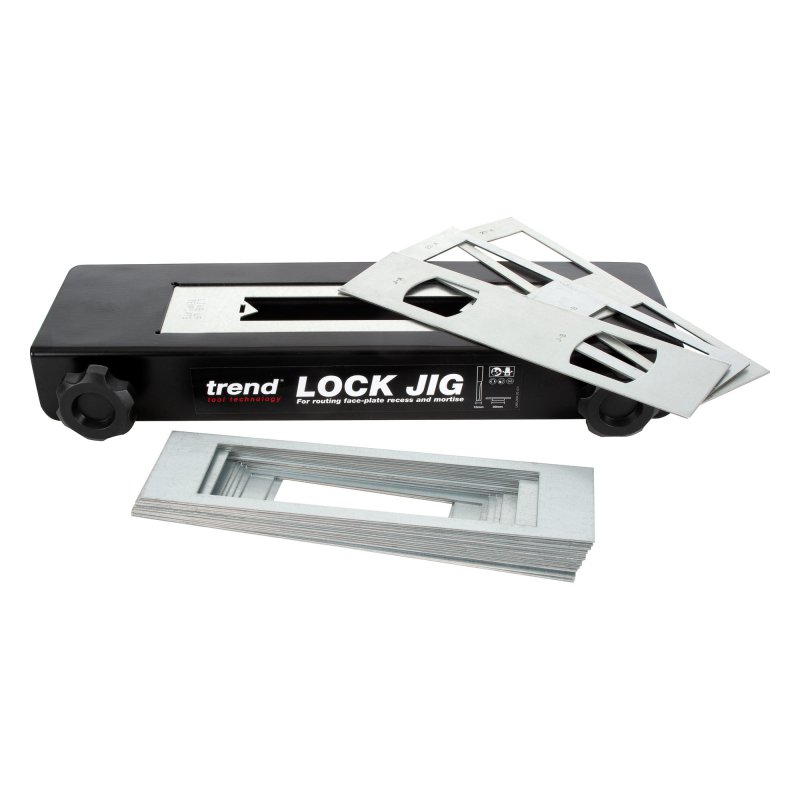

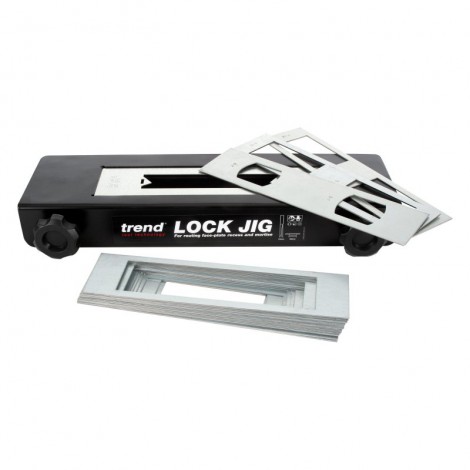

- 20 Interchangeable Templates to suit all common lock case and face plate sizes.

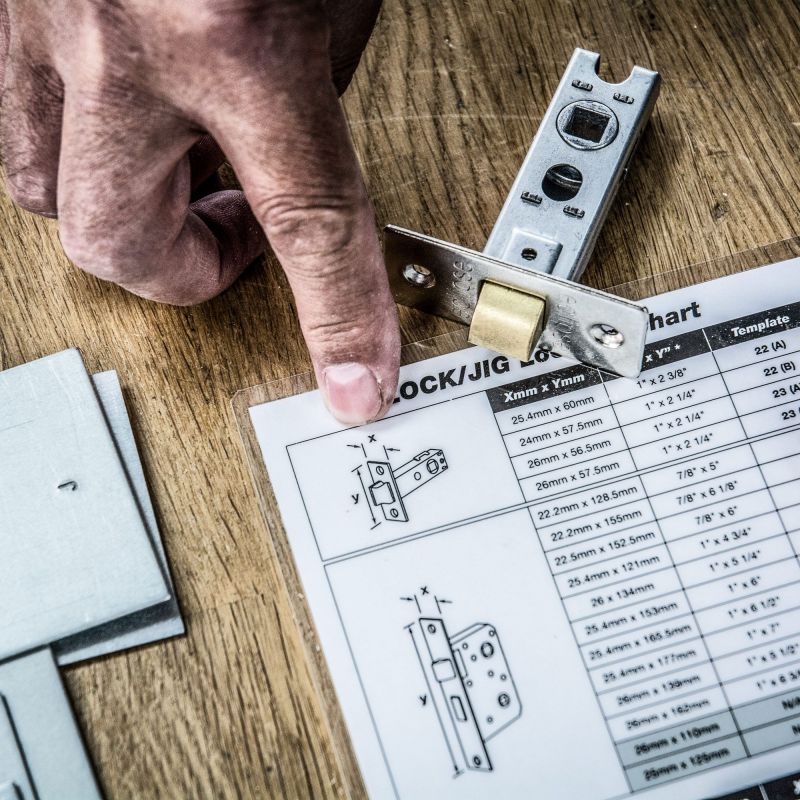

- Easy Reference Chart ensures that correct templates are found quickly.

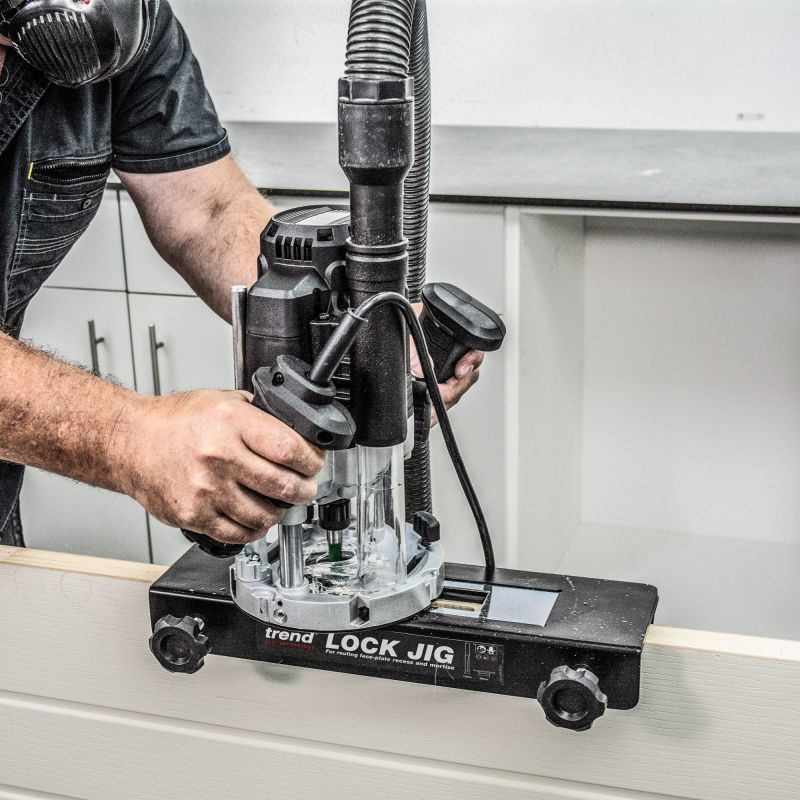

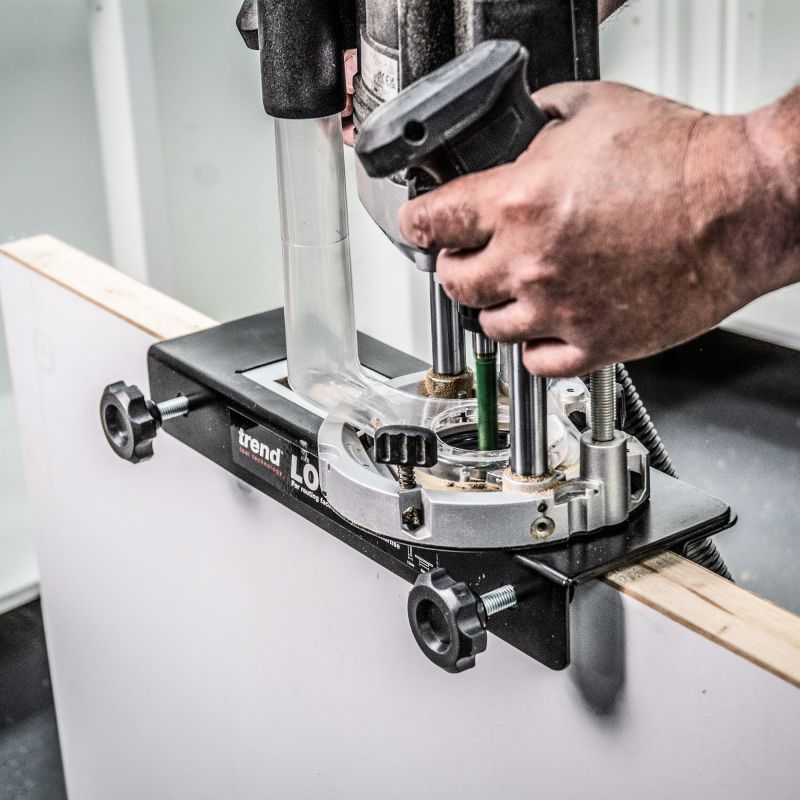

- Requires: ÚÓ/12mm Plunge Router (80mm plunge depth), ÚÓ/12mm Router Cutter (12mm cut diameter x 63mm cut length), and 30mm Guide Bush.
Dimensions:
- Door thickness min.=34 mm
- Door thickness max.=58 mm
- Faceplate Templates:
- 25.4 x 60.0mm (Tubular Latch)=22(A)
- 24.0 x 57.5mm (Tubular Latch)=22(B)
- 26.0 x 56.5mm (Tubular Latch)=23(A)
- 26.0 x 57.5mm (Tubular Latch)=23(B)
- 22.2 x 128.5mm=20
- 22.2 x 155.0mm=1
- 22.5 x 152.5mm=2
- 25.4 x 121.0mm=3
- 26.0 x 134.0mm=5
- 25.4 x 153.0mm=7
- 25.4 x 165.5mm=9
- 25.4 x 177.0mm=10
- 26.0 x 139.0mm=21
- 26.0 x 162.0mm=12
- Mortise Templates:
- 19 x 22mm (Tubular Latch)=J(A)
- 22 x 24mm (Tubular Latch)=J(B)
- 16 x 72mm=A
- 16 x 102mm=F
- 16 x 109mm=B
- 19 x 78mm=C
- 19 x 90mm=E
- 19 x 109mm=D
- 19 x 115mm=H
