Trend H/JIG/D6 AnyDoor Hinge Jig Kit D6 UK

Product Ref:
TREHJIGD6
Trend
Special
      Click & Collect in Store
    In Our Stock
    Ready For Despatch
ONLY £279.99 INC
£233.32 EXC
Order within 1h 15m for next working day delivery on Monday 27th July
LOGIN TO ADD FAVOURITES
£2.33 LOYALTY POINTS
Trend H/JIG/D6 AnyDoor Hinge Jig Kit D6 UK
Product Ref:
TREHJIGD6
Trend
    In Our Stock
    Ready For Despatch
ONLY £279.99 INC
£233.32 EXC
Order within 1h 15m for next working day delivery on Monday 27th July
£279.99
INC
Buy At The Same Time Offers
TRECCHISEL Trend C/CHISEL Corner Chisel
In Stock
Buy At Same Time
SAVE
£2.07
£15.52 INC
Add these Buy At The Same Time items to your basket after adding the main product to make additional savings
Features & Specification

Trend H/JIG/D6 AnyDoor Hinge Jig D6 UK

Fully-adjustable, modular routing jig designed to quickly and accurately recess square and 10mm radius hinges in timber doors & frames. Accommodates both full-height (1981mm/2040mm) and custom smaller doors.

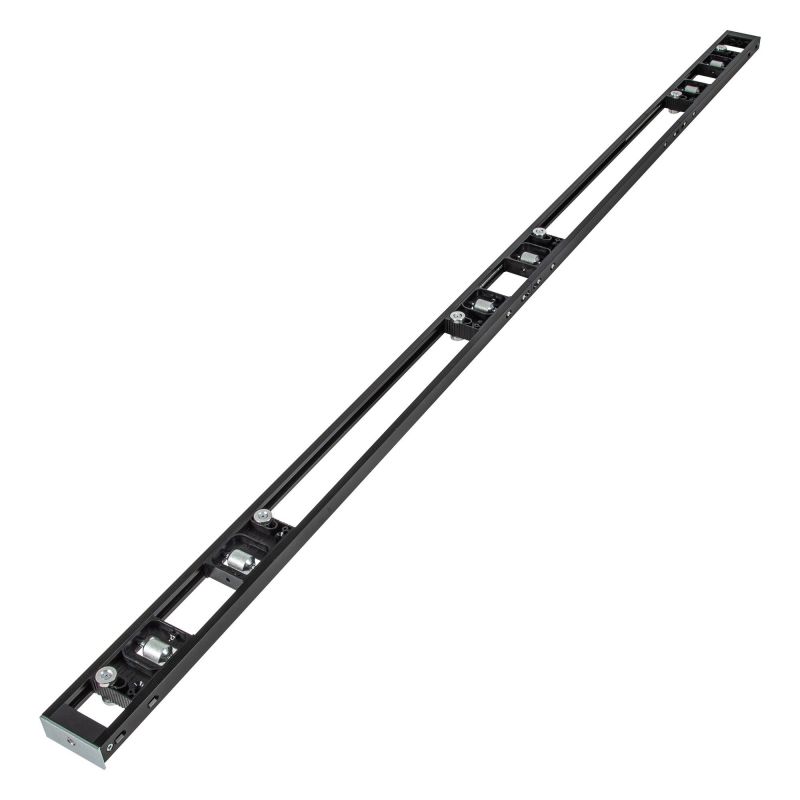

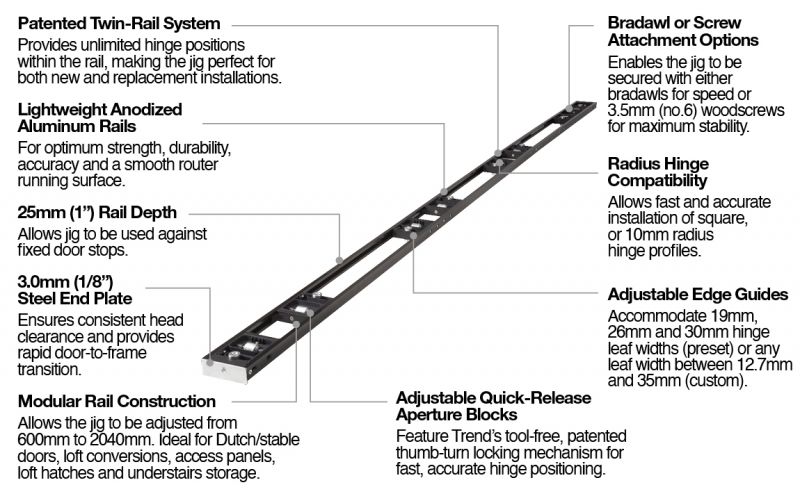

  • Modular Rail Construction allows the jig to be shortened or extended to suit smaller or oversize doors. Ideal for Dutch/stable doors, loft conversions, access panels, loft hatches and understairs storage. Expansion rails available for doors larger than 2040mm (6'8").
  • Patented* Twin-Rail System provides unlimited hinge positions within the rail, making the jig perfect for both new and replacement installations.
  • Radius Hinge Compatibility allows fast and accurate installation of square or 10mm radius hinge profiles.
  • Bradawl or Screw Attachment Options enables the jig to be secured with either bradawls for speed (included) or 3.5mm (no.6) woodscrews for maximum stability.

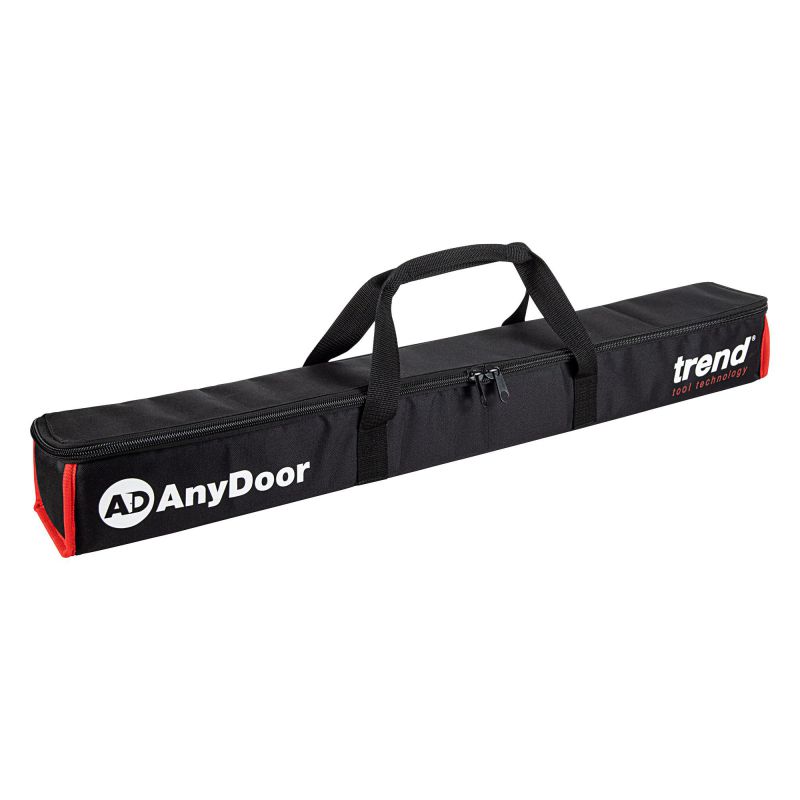

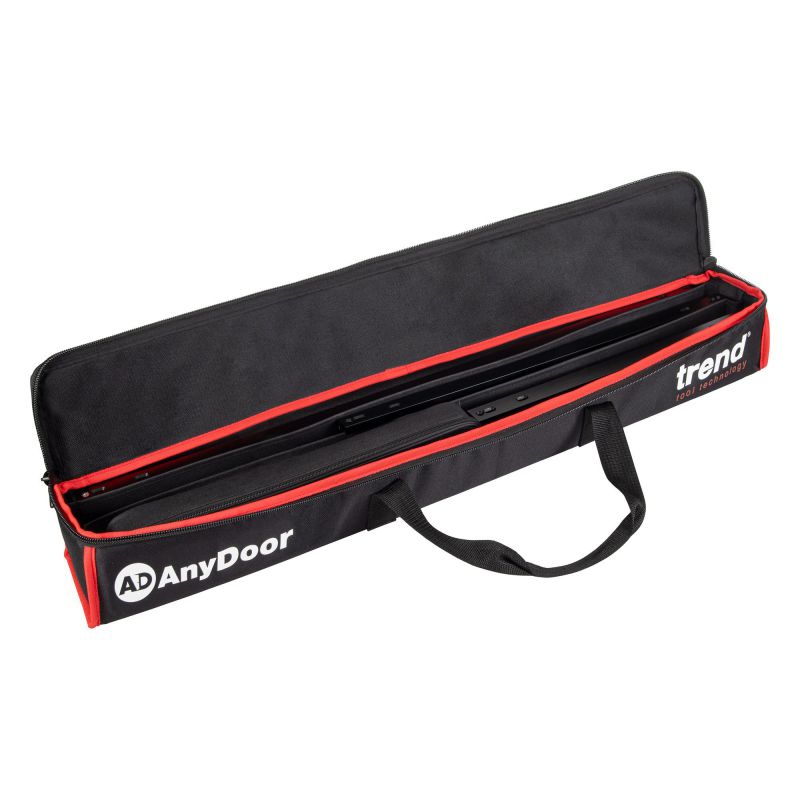

  • Tough Carry Bag stores pre-built jig sections to minimise assembly time.
  • Lightweight Anodized Aluminium Rails for optimum strength, durability, accuracy and a smooth router running surface.
  • Adjustable Edge Guides accommodate 19mm, 26mm and 30mm hinge leaf widths (preset) or any leaf width between 12.7mm and 35mm (custom).
  • Adjustable Quick-Release Aperture Blocks feature Trend's tool-free, patented* thumb-turn locking mechanism for fast, accurate hinge positioning.
  • 3.0mm (1/8") Steel End Plate ensures consistent head clearance and provides rapid door-to-frame transition.
  • 25mm (1") Rail Depth allows jig to be used against fixed door stops.
  • Includes: 16.0mm Guide Bush.
  • Requires: 12.0mm long-reach Router Cutter and 1/4"/8mm Plunge Router.

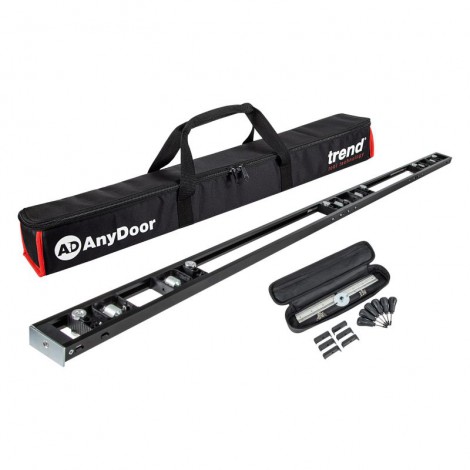

Contents

  • 1'6" Rails (x2)
  • 2' Rails (x2)
  • 3' Rails (x4)
  • End Blocks
  • Hinge Blocks (x6)
  • Connectors (x6)
  • Screws (x24)
  • Bradawls (x6)
  • GB160 Guide Bush
  • Carry Bag with Accessory Pouch
