SawStop PCS52 Professional Cabinet Saw 3HP 230V 50Hz 52" - DADO Plus

SawStop PCS52 Professional Cabinet Saw 3HP 230V 50Hz 52" T-Glide Advance Fence System - DADO Plus

BEST-IN-CLASS PERFORMANCE PROFESSIONAL CABINET SAW

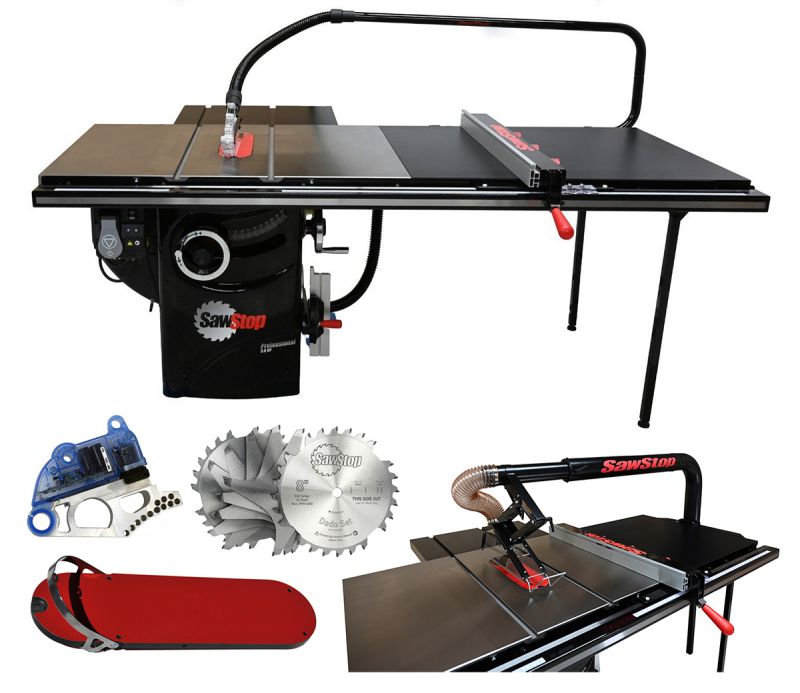

DADO Plus configuration includes the add-ons and accessories needed to use the saw under EU rules and includes the Floating Overarm Dust Collection Guard, Secured Dado Lock Down Zero-Clearance Insert, Table Saw Brake Cartridge For 8″ Dado sets and 8″ Premium Dado Set 5/8” Arbor

Includes

• PCS31230-EU-52 Cabinet Saw
• TSDC-8R3-I Brake Cartridge
  • Engineered specifically for 8" dado blades
  • Activates SawStop’s safety system on skin contact
  • Tool-free installation in under 90 seconds
• TSI-DLD-I Secured Dado Lock Down Zero-Clearance Insert
  • Custom-fit support for wide dado cuts
  • Lock-down design for secure placement
  • Minimizes tear-out and improves finish quality
• TSG-FDC-I Floating Overarm Dust Collection
  • Produces clean, flat-bottomed grooves and rabbets
  • Precision-ground carbide teeth for long life
  • Adjustable chipper blades for custom widths (up to 29/32")

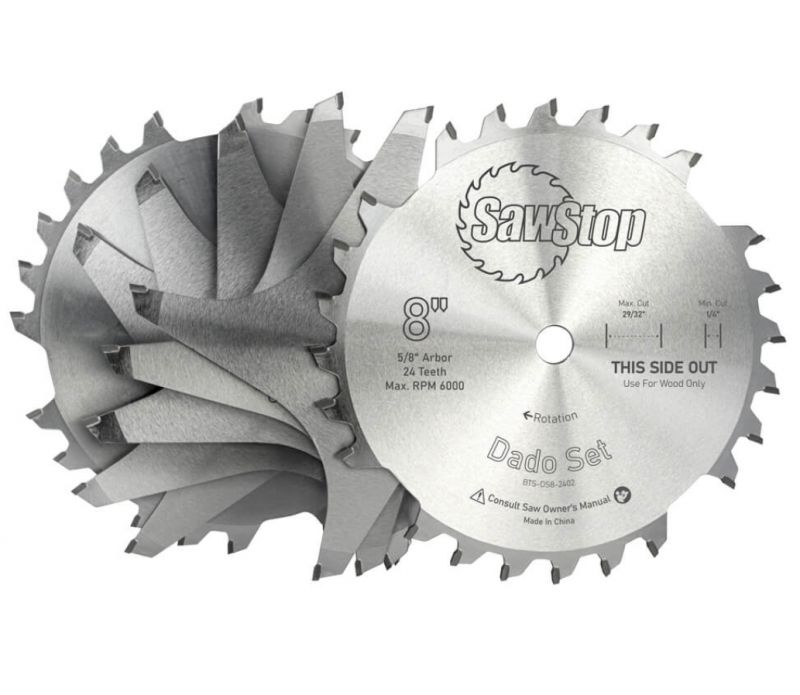

• BTS-DS8-2402-I 8" Premium Dado Set with 5/8mm Arbor
  • ​Produces clean, flat-bottomed grooves and rabbets
  • Precision-ground carbide teeth for long life
  • Adjustable chipper blades for custom widths (up to 29/32")

 16A supply recommended for this machine

More than a saw. It’s your standard.
The SawStop Professional Cabinet Saw isn’t just a piece of equipment—it’s the heart of your workshop. Built for those who demand flawless precision and expect nothing less than total safety, the PCS is where craftsmanship meets confidence. Every cut is controlled. Every detail engineered. Every moment protected by the world’s most advanced safety system.
This isn’t about working harder. It’s about working smarter, safer, and better. Whether you're building one piece or producing at scale, the SawStop PCS is your benchmark for what a table saw should be.

The Professional Cabinet Saw is SawStop’s top selling cabinet saw, offering unmatched fit and finish and best-in class-cutting performance.

52-INCH T-GLIDE ADVANCE FENCE ASSEMBLY: This aluminum fence assembly provides smooth operation and precise measurement together with quick-adjust Hi-Lo design for additional safety with thin or narrow cuts.

UNMATCHED QUALITY: The trunnion and arbor are built for precision, strength and stability. The gas piston elevation delivers smooth and easy adjustability. Table flatness is measured diagonally at 0.010” maximum gap.

SUPERIOR DUST COLLECTION: 99% dust collection is delivered above the table with the overarm dust collection system and micro-guard. Below the table the advanced shrouding around the blade routes dust away from the blade and into the 4” / 100mm port.

OUTFEED SUPPORT: Added support of the outfeed table proides even more control and safety for larger work pieces. For even bigger pieces a folding outfeed table (sold separately) makes a a fantastic upgrade as well as saves space.

SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch.

RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, as well as an additional residual current breaker, and constantly checks that all systems are working to reliably keep you safe.

POWERFUL 3HP MOTOR: Delivers ample torque and cutting power to effortlessly rip through a wide range of materials with speed and precision.

Features:

• 52" Professional T-Glide Fence System provides smooth operation, an expansive work surface, precision measurement and sure lockdown without deflection.
• Unmatched fit and finish with a keen attention to detail make the Professional Cabinet Saw SawStop's most popular saw.
• SawStop Safety System stops on contact with skin.
• ASSEMBLY: Professional 3HP 230V 50Hz T-Glide Advance Fence System, Rails, Extension table, Overarm Dust Collection, Outfeed Table

Supplied with:

• (2) Cast Iron Extension Wings
• (1) Overarm Dust Collection Assembly
• (1) Dust Collection Blade Guard
• (1) Outfeed Table
• (1) Miter Gauge
• (2) Riving Knives (for 254mm and 250mm blades)
• (2) Blade Wrenches
• (1) Push Stick
• (1) Push Block
• (1) 10” / 254mm 40T Combination Blade
• (2) Arbor Washers (for 30mm and 5/8 bore blades)
• (1) Zero Clearance Lockdown Insert
• (1) Standard Brake Cartridge
• (1) Owner’s Manual
• (2) Hardware Packs
• (1) 3mm Hex Key
• (1) 5mm Hex Key
• (1) 8mm Hex Key

Specifications

• Overall Saw Dimensions (Saw Only) 508 mm W x 827 mm D x 864 mm H
• Dimensions w/ 1321 mm (52”) Fence Rails 2136 mm W x 827 mm D x 864 mm H
• Cabinet Footprint 495 mm x 495 mm
• Cast Iron Table (w/ Wings) 827 mm D x 1118 mm W
• Extension Wings (Each) 827 mm D x 305 mm W [x2]
• Extension Table – 36” Rails 827 mm D x 602 mm W
• Extension Table – 52” Rails 827 mm D x 1018 mm W
• Outfeed Table 635 mm W x 410 mm D

⚙️ Weights & Core Specs

• Weight – Saw w/ Wings Only 162 kg (357 lbs)
• Weight – w/ 52” T-Glide Rails 204 kg (451 lbs)
• Single Cast Iron Extension Wing 19 kg (43 lbs)
• Shipping Weight (Boxed Saw) Approx. 215 kg (474 lbs)
• Included Blade 254 mm (10"), 40T, Pro Grade, 30 mm arbor
• Blade Tilt Left
• Max Cut Depth @ 0° 79 mm (3 1/8”)
• Max Cut Depth @ 45° 57 mm (2 1/4”)
• Max Rip Right – 52” Rails 1321 mm (52”)
• Max Rip Left 304 mm (12”)
• Blade Guard Options Spreader Guard (ODC) / Floating Guard (FDC)
• Main Bearing Size 62 mm OD x 30 mm ID
• Second Bearing Size 52 mm OD x 25 mm ID
• Table Front of Blade (Elevated) 260 mm (10 1/4”)
• Table Behind Blade (Elevated) 190.5 mm (7 1/2”)

🔧 Precision & Build Quality

• Arbor Runout Max 0.025 mm (0.001”)
• Table Flatness Diagonal Max 0.25 mm (0.010”)
• Total Table Flatness (with Wings) Max 0.6 mm (0.025”)
• Blade-to-Miter Slot Alignment Max 0.25 mm (0.010”)
• Miter Gauge Deviation ± 0.25°
• Spreader-to-Blade Alignment Max 0.25 mm (0.010”)
• Miter Slots T-shaped: 19 mm top, 25 mm bottom, 9.5 mm deep

Blade Requirements – EU Specifications

• Blade Diameter (A) 250 mm – 254 mm (10")
• Arbor (Bore) Diameter (B) 30 mm (with shoulder washer) / 16 mm (5/8") without shoulder
• Blade Plate Thickness (C) 1.8 – 2.1 mm (as marked on riving knife)
• Blade Kerf (D) 2.35 – 3.5 mm (as marked on riving knife)
• Dado Diameter 203 mm (8") – requires separate brake cartridge and dado insert
• Dado Arbor Diameter (B) 16 mm (5/8")
• Max. Dado Blade Width (E) 20 mm
• Max. Speed (No-Load) 4000 RPM
• Riving Knife / Spreader Thickness (F) 2.3 mm (0.090")
• Blade-to-Riving Knife / Spreader Gap (G) 4 – 8 mm (0.175" – 0.31")
