Corded Power Tools > Mitre Saws > Flip-Over Saws

SawStop Floating Overarm Dust Collection

Product Ref:

SSPTSGFDCI

Click & Collect in Store

Typically available
in 2 - 5 Days

ONLY £499.00 INC

£415.83 EXC

£2.08 LOYALTY POINTS

SawStop Floating Overarm Dust Collection

Product Ref:

SSPTSGFDCI

ONLY £499.00 INC

£415.83 EXC

Features & Specification

SawStop Floating Overarm Dust Collection

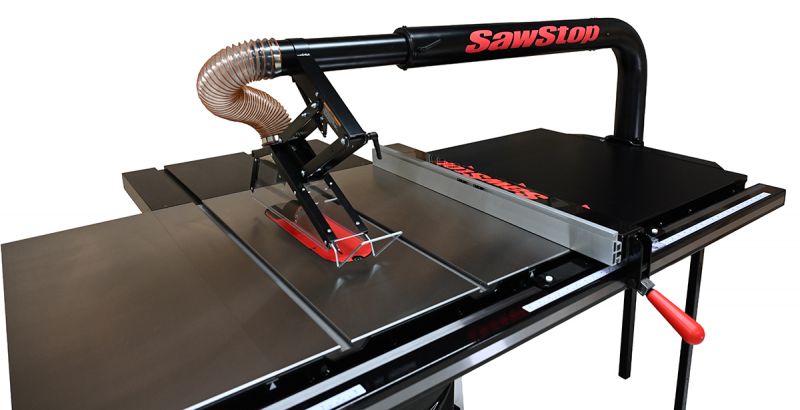

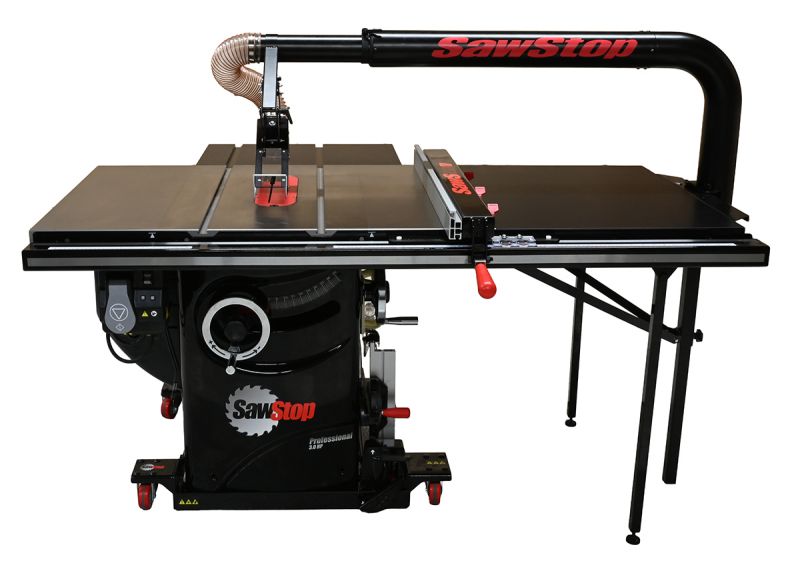

INDUSTRIAL DUST COLLECTION FOR A DYNAMIC WORK ENVIRONMENT FLOATING OVERARM DUST COLLECTION

This heavy-duty 4” / 100mm overarm is designed to provide operator protection while removing table-top dust in both standard and non-through cuts, and is essential for safe Dado usage. The transparent blade cover is engineered to lift easily for quick blade access, and the rigid steel overarm swings smoothly away and back into operating position. The wide pipe allows for high air volume collection.

Features:

Blade Guard Dimensions 3 1/2” x 18 1/2” / 9cm x 47cm
Distance between blade and end of extenion table 35 3/4” to 68" / 91cm to 173cm
Inner Dust Tube Diameter 3” / 76mm Outer Dust Tube Diameter 4” / 100mm
Outer Dust Tube height above table 13 1/2” / 34cm Outer Dust Tube height above floor 33 1/2” to 50” / 85cm to 127cm
Above Table Dust Collection-The large 4" / 100mm tube allows for high air volume and above-table dust collection keeping harmful dust out of your shop. A dedicated 4" / 100mm extraction port increases dust collection while only requiring a minimum of 400 CFM.

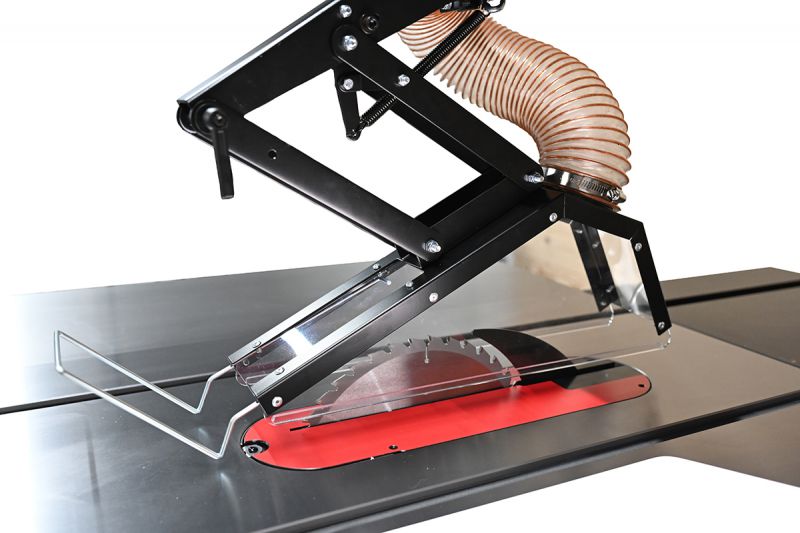

Adjustable Blade Guard - The blade guard provides the operator protection while making standard and non-through cuts, and the transparent cover increases visibility when making narrow cuts. The guard lifts easily for quick blade access and locks in place using the lock handle when not in use

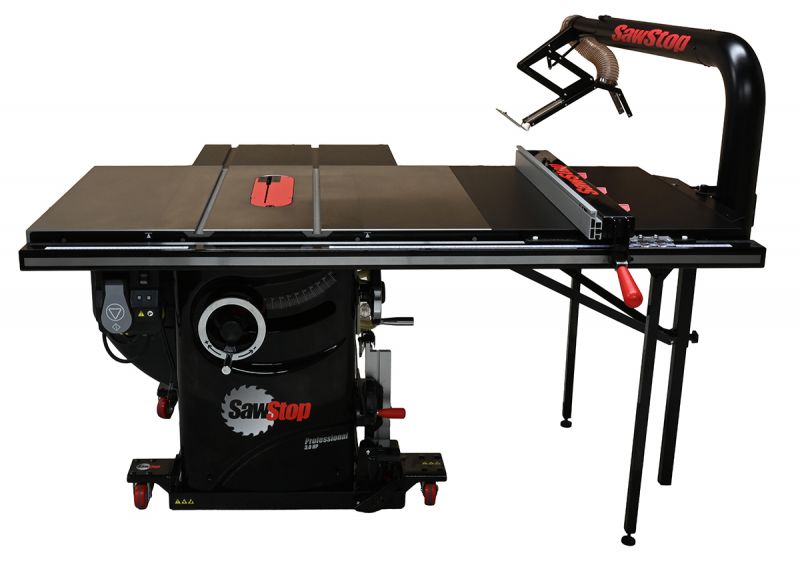

Versatility - The dust collection tube can be easily adjusted to accommodate different SawStop cast iron saw configurations. It can be moved out of position by releasing the dust tube lock knob, or removed and stored when not in use.
Rugged Durabilty - The Floating Dust Collection is constructed from heavy-duty powder coated aluminum. The support legs connect underneath the extension table and ensure the rigidity of the large dust tube and blade guard.
REQUIRED FOR DADOS - In Europe the Floating Overarm Dust Collection must be used to be CE or UKCA compliant, which is mandatory in a professional workplace

Supplied with:

Floating arm, hose, mount kit, instructions
Extension leg
Dust collection guard mounting bracket
(2) leg support bracket
Outer dust tube
Inner dust tube
Floating dust collecting blade guard
Owner's manual
Hardware pack
PCS Conversion Kit

Specifications

Net Weight 26.3 kg
Blade Guard Dimensions 89 mm x 470 mm (3.5" x 18.5")
Distance Blade to Extension Table End 908 mm to 1727 mm (35.75" to 68")
Inner Dust Tube Diameter 76 mm (3")
