Mafell NFU50-18 18v (2 x 18V = 36V) Cordless Groove Cutting Machine PURE

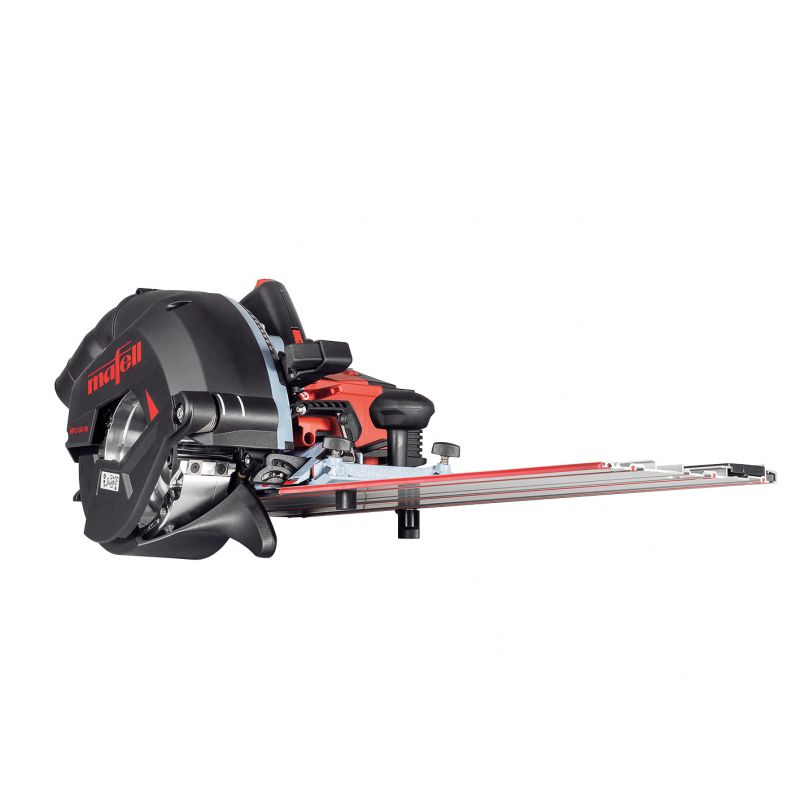

Mafell NFU50-18 Cordless Groove Cutting Machine PURE

New Coming Soon Mid-April - Pre-Order Yours Now As Stock Will Be Limited!

Groove cutting machine NFU 50 offers flexibility of use and is an all-rounder capable of executing an enormous range of timberconstruction tasks. An extensive range of accessories opens up further possibilities for day-to-day work.

The design of the NFU 50 is characterized by the use of extremely rugged, high-quality and precision-made parts, including the lightweight magnesium die-cast housing and impact-resistant, fiber glass-reinforced plastic components. It also features clever technical details to help you meet the rigors of the job.

Applications

• Lengthwise and crosswise grooves
• Frieze blocks (with guide)
• Panels in half-timbered buildings, false floors
• Birdsmouth joints up to 45°
• Tenons
• Compatible materials include solid wood and board materials

Advantages

• The rotating 58 mm (2 5/16 in.) hose connector for large volumes of dust can be positioned by means of a locking function.
• The 2-in-1 functionality allows the cutting depth to be set quickly and easily.
• The brake on the Groove cutting machines stops the motor within 3 seconds for optimum saftey.
• The NFU can be removed from the cross-cut track at the single press of a button, allowing its use either freehand or on the guide rail.

Usage

• The NFU 50’s sheer strength and outstanding motive power permits cuts 60 mm (2 3/8 in.)wide and 50 mm (1 15/16 in.) deep.
• Grooves measuring 22 mm (7/8 in.) to 40 mm (1 9/16 in.) can be produced using the expanding groove cutter available as an optional accessory.
• The NFU 50 can also be used as a skew notch and tenon cutter.
• Individual tenons can be executed effortlessly with the NFU 50 and guide L.

Specifications

• Cutting depth at 0° with guide track 0 – 44 mm
• Cutting depth at 0° with guide track 0 - 1 3/4 in
• Cutting depth at 0° without guide track 0 – 50 mm
• Cutting depth at 0° without guide track 0 - 1 15/16 in
• Tilt range 0 – 45 °
• Nominal No. of strokes – no load 4700 - 7100 1/min
• Weight (including battery) 10,3 kg
• Weight (including battery) 22.7 lbs
• Dimensions (W x L x H) with guide L 370 x 810 x 280 mm
• Dimensions (W x L x H) with guide L 14 9/16 x 31 7/8 x 11 in
• Cutting length with guide L 370 mm
• Cutting length with guide L 14 9/16 in
• Extraction connection diameter 49 mm
• Extraction connection diameter 1 5/16 in
• Nominal voltage 2 x 18 V

Contents

• 1 Cutter head Ø 163 x 60 mm (6 7/16 x 2 3/8 in.); Ref. No. 091901
• 1 position indicator NFU-PA
• 1 Parallel guide fence
• 1 Side fence SA 625; Ref. No. 207183
• 1 Guide track L, max. cutting length 370 mm (14 9/16 in.); Ref. No. 208171
• 1 allen key SW 6
• 1 allen key Torx T 15
• boxed
