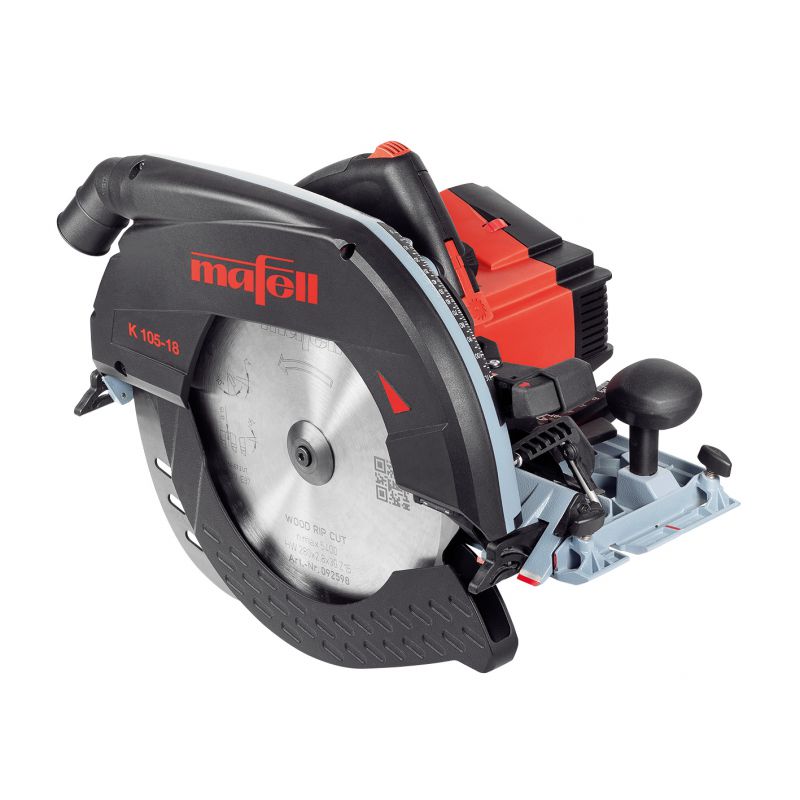

Mafell K105 18v (2 x 18V = 36V) Cordless Portable Circular Saw Pure Version Max Cut 110mm/104mm On Rail

Mafell K105 18v Cordless Portable Circular saw Pure

The K 105-18 saw are perfectly equipped to meet the future challenges of the woodworking trades. Not only in view of their exemplary material and build qualities, but also thanks to their well-conceived userfriendliness and compatible dual-battery technology.

With the MAFELL Ergo Balance Concept, our portable circular saws are optimized for all types of work. This not only enables precise work, but also optimum ergonomic guidance. This effectively reduces fatigue.

It is no longer necessary to unscrew the riving knife – the FLIPPKEIL offers you optimum user-friendliness and safety when plunge cutting.

Applications

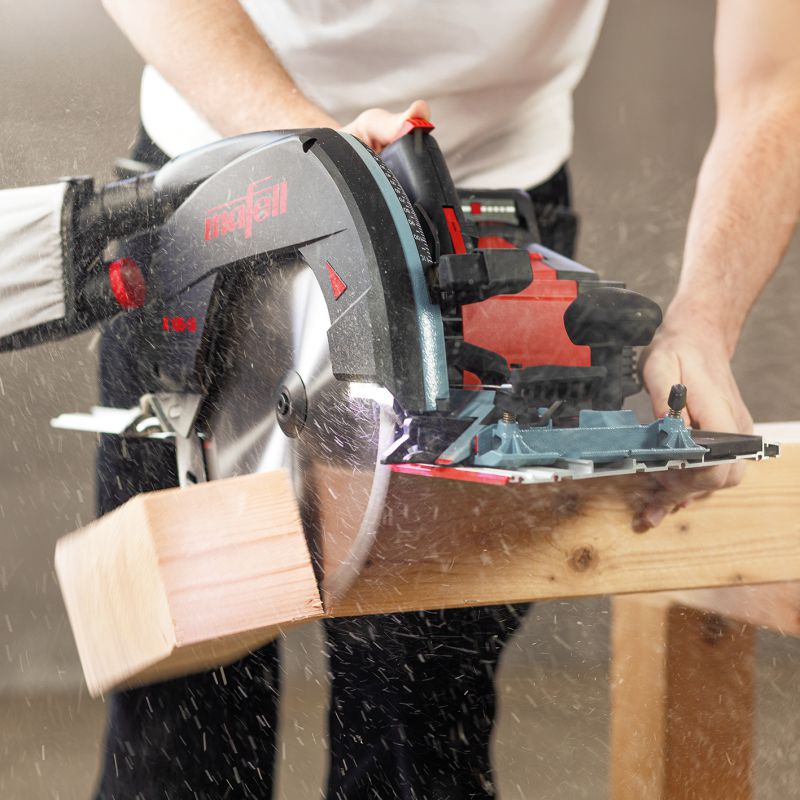

• Cross-cutting and rip cuts
• Bevel / compound miter cuts up to 60°
• Birdsmouth cuts
• Plunge cuts
• Chamfers and grooves
• Compatible materials include solid wood, board materials, insulating materials, doors, worktops and internal finishing and renovation materials

Advantages

• Optimum chip ejection, especially when sawing insulating materials.
• Bright LEDs illuminate a large working area.
• Sawing to mark. The pointer adjusts automatically to the set tilt angle.
• For an enhanced cutting depth of up to 110 mm (4 5/16 in.). Even when used in conjunction with the guide rail, it achieves an exceptional depth of 104 mm (4 1/8 in.).
• The cutting depth is set and locked in a single, quick action.
• Thanks to the new tilting arrangement, reading the scale is easier than ever before.
• With the groove in the base plate, the portable circular saw can be used as a cross-cutting system. The guide device is required for this.

Usage

• An ideal application for guide L is cutting structural timber to length, with a max. cutting depth of 104 mm and a max. cross-cutting length of 370 mm.
• Rip cuts with a guide rail or parallel fence and an ample cutting depth.

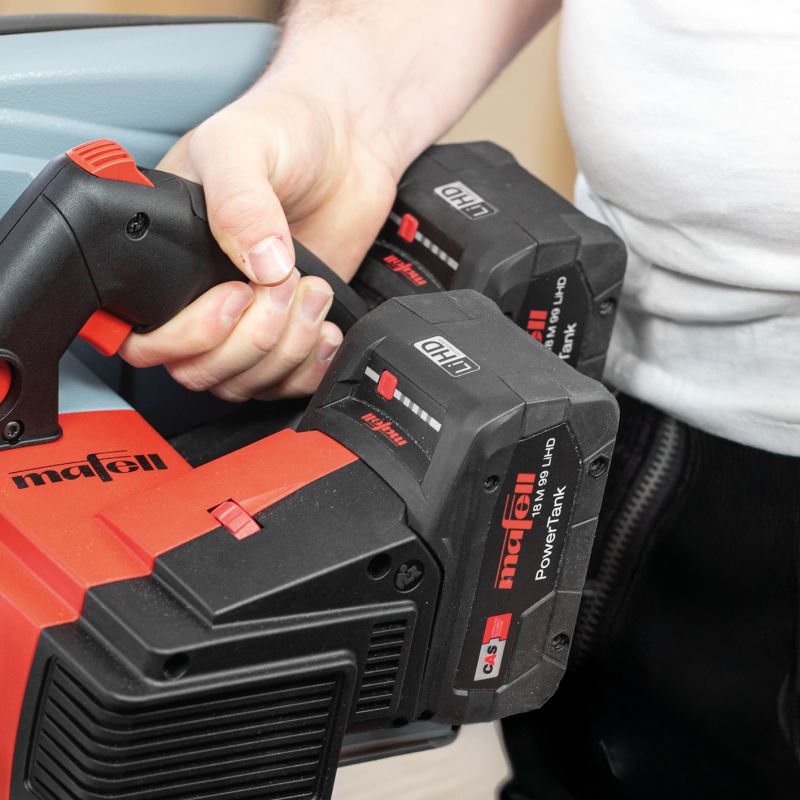

• With 2 CAS batteries for exceptional power, independence and thanks to the CAS battery system, nothing stands in the way of flexible use of other system partners.
• With the MAFELL ErgoBalanceConcept, our portable circular saws are optimized for all types of work. This not only enables precise work, but also optimum ergonomic guidance.

​Specifications

• Cutting depth 0 - 110 mm
• Cutting depth 0 – 4 5/16 in
• Cutting depth (a) 0 mm
• Cutting depth (b) 110 mm
• Cutting depth at 45° 0 – 77 mm
• Cutting depth at 45° 0 – 3 1/16 in
• Cutting depth at 60° 2 – 55 mm
• Cutting depth at 60° 1/16 – 2 3/16 in
• Cutting depth on rail 0 – 104 mm
• Cutting depth on rail 0 – 4 1/8 in
• Tilt range 0 – 60 °
• Nominal No. of strokes – no load 2800 – 5200 1/min
• Extraction connection diameter 35 mm
• Extraction connection diameter 1 3/8 in
• Nominal voltage 2 x 18 V
• Weight (including battery) 9,3 kg
• Weight (including battery) 20.5 lbs

Supplied with:

• 1 Saw blade KSB-WL 280 GT HW, 280 x 2,8 x 30mm (11 in.), T15-5, AT/FT, Wood Rip Cut; Ref. 092598
• 1 Parallel guide fence K 105-PA; Ref. 212867
• 1 Allen key 5 mm
• boxed
