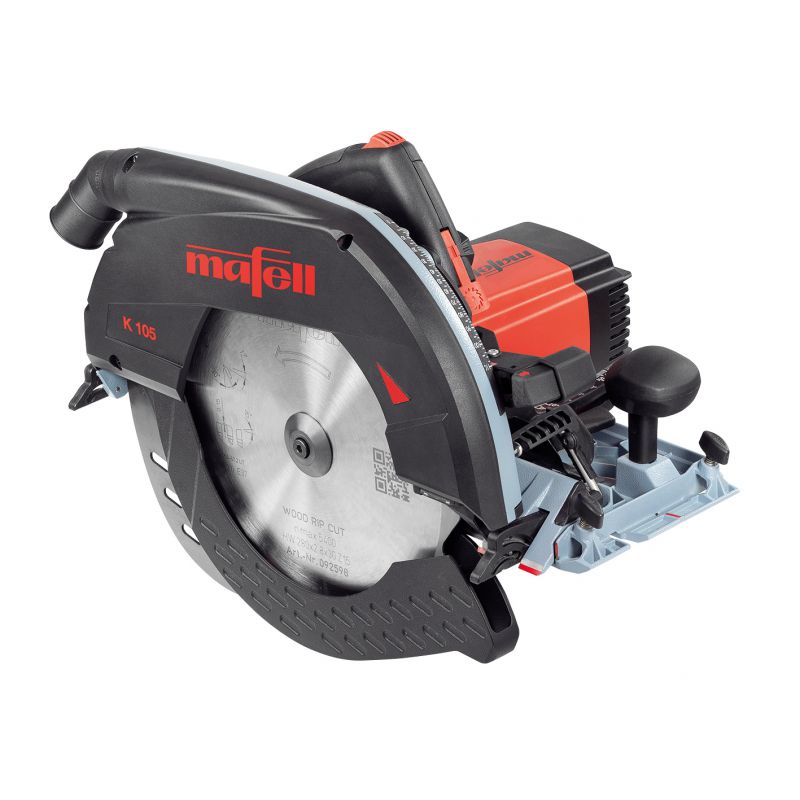

Mafell K 105 230V Portable Circular Saw 280mm Blade Max Cut 110mm/104mm On Rail

Mafell K105 Portable Circular saw 230v

New Coming Soon Mid-April - Pre-Order Yours Now As Stock Will Be Limited!

The MAFELL portable circular saw combines power and precision with ease of use and ergonomic design. These properties transform the machine into a unique system.

With the MAFELL Ergo Balance Concept, our portable circular saws are optimized for all types of work. This not only enables precise work, but also optimum ergonomic guidance. This effectively reduces fatigue.

Sheer power and high torque take on a whole new meaning with the high-output CUprex motor. It offers performance-optimized digital electronics and newly developed control technology. Its speed is continuously variable according to the nature of the material and application.

It is no longer necessary to unscrew the riving knife – the FLIPPKEIL offers you optimum user-friendliness and safety when plunge cutting.

Applications

• Cross-cutting and rip cuts
• Bevel / compound miter cuts up to 60°
• Birdsmouth cuts
• Plunge cuts
• Chamfers and grooves
• Compatible materials include solid wood, board materials, insulating materials, doors, worktops and internal finishing and renovation materials

Advantages

• Optimum chip ejection, especially when sawing insulating materials.
• Bright LEDs illuminate a large working area.
• Sawing to mark. The pointer adjusts automatically to the set tilt angle.

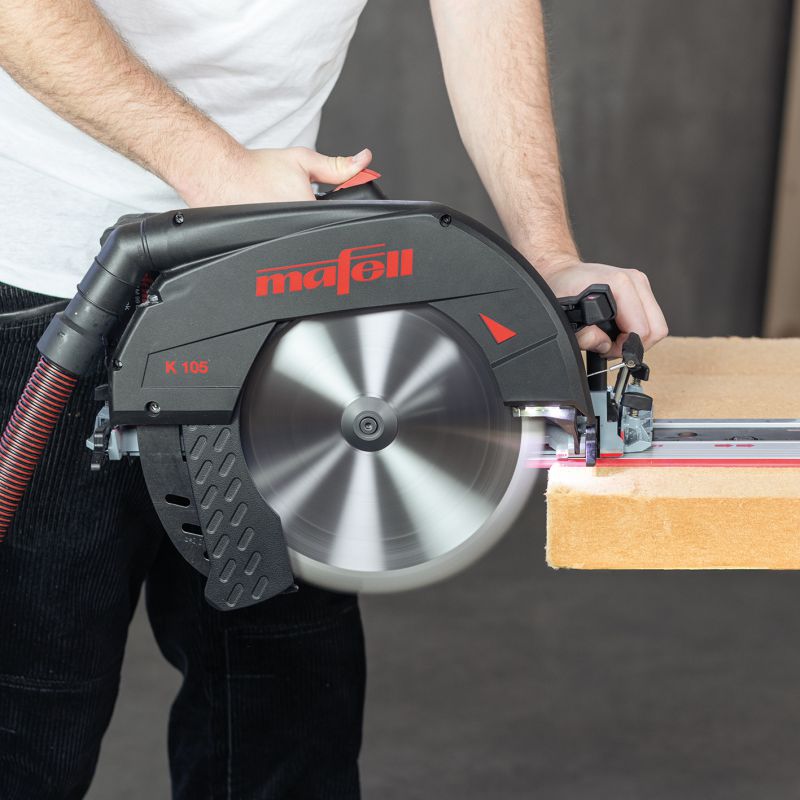

• For an enhanced cutting depth of up to 110 mm (4 5/16 in.). Even when used in conjunction with the guide rail, it achieves an exceptional depth of 104 mm (4 1/8 in.).
• The cutting depth is set and locked in a single, quick action.
• Thanks to the new tilting arrangement, reading the scale is easier than ever before.
• With the groove in the base plate, the portable circular saw can be used as a cross-cutting system. The guide device is required for this.

Usage

• Thanks to the unique tilting system, the sawblade always cuts directly along the rubber lip, irrespective of the angle setting.
• Working close to the edge is facilitated by the K 105-UA roller edge guide. Use the scale marked on the arm to set the spacing.

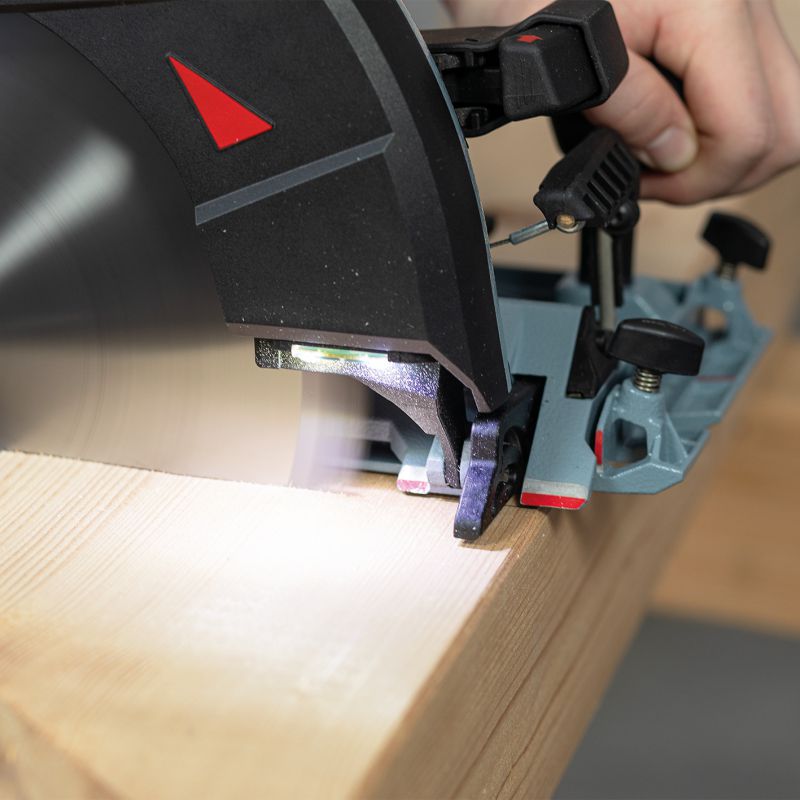

• Bright LEDs illuminate a large working area. In sleep mode, a timer switches the light off after 10 seconds.
• The sawblade and pivoting guard can be locked with a single action. This practical solution engages the starting lockout at the same time.

Specifications

• Cutting depth 0 - 110 mm
• Cutting depth 0 – 4 5/16 in
• Cutting depth (a) 0 mm
• Cutting depth (b) 110 mm
• Cutting depth at 45° 0 – 77 mm
• Cutting depth at 45° 0 – 3 1/16 in
• Cutting depth at 60° 2 – 55 mm
• Cutting depth at 60° 1/16 – 2 3/16 in
• Cutting depth on rail 0 – 104 mm
• Cutting depth on rail 0 – 4 1/8 in
• Tilt range 0 – 60 °
• Nominal No. of strokes – no load 2250 – 4400 1/min
• Extraction connection diameter 35 mm
• Extraction connection diameter 1 3/8 in
• Nominal power input 2300 W
• Nominal power input 3.1 hp
• Weight 8,1 kg
• Weight 17.9 lbs
• Universal motor 230 V / 50 Hz

Supplied with:

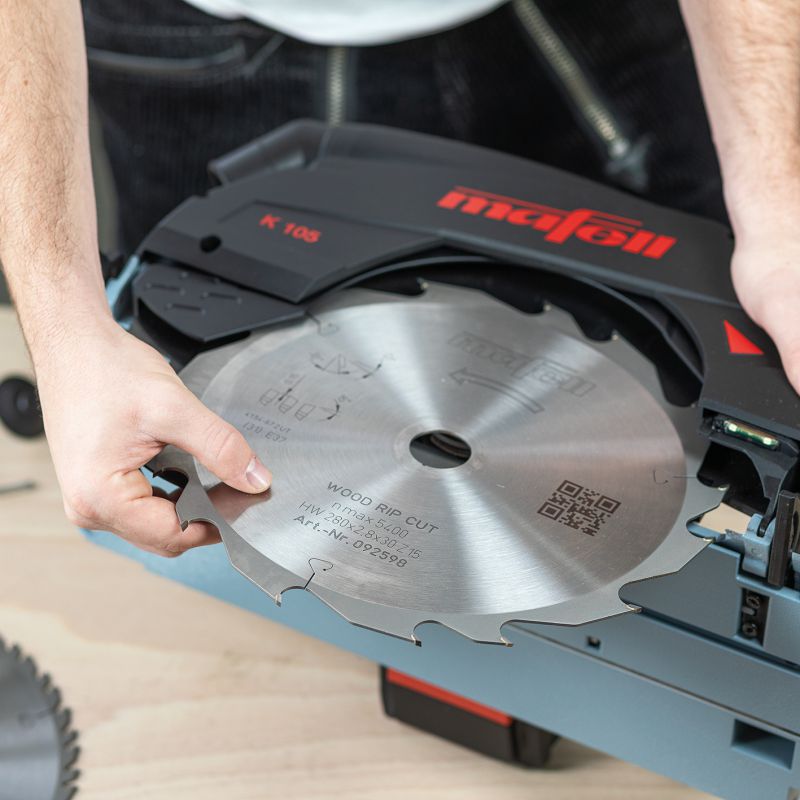

• 1 Saw blade KSB-WL 280 GT HW, 280 x 2,8 x 30mm (11 in.), T15-5, AT/FT, Wood Rip Cut; Ref. 092598

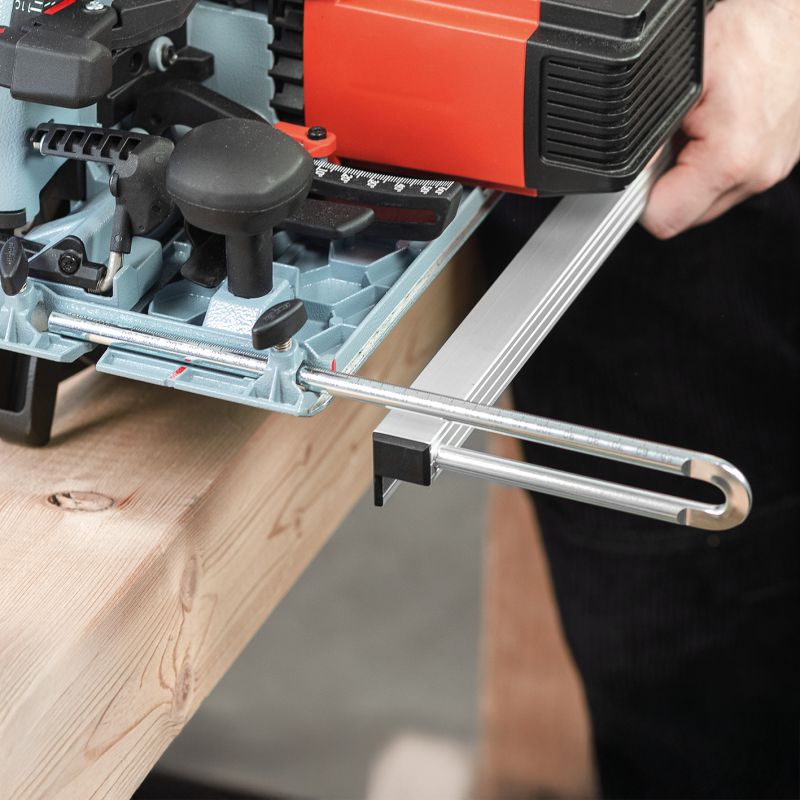

• 1 Parallel guide fence K 105-PA; Ref. 212867
• 1 Allen key 5 mm
• 1 Mains cable 10 m (32.8 ft)
• boxed
