Mafell Erika 85Ec 240v New Push & Pull Precision Saw System 971 921 With Sliding Table + 2 x 1m Rails & Extension Table
Product Ref:
MAFERIKA85ECNAV2
Click & Collect in Store
In Our Stock
Ready For Despatch
ONLY £3,999.00 INC
£3,332.50 EXC
LOGIN TO ADD FAVOURITES
£25.00 LOYALTY POINTS
Mafell Erika 85Ec 240v New Push & Pull Precision Saw System 971 921 With Sliding Table + 2 x 1m Rails & Extension Table
Product Ref:
MAFERIKA85ECNAV2
In Our Stock
Ready For Despatch
ONLY £3,999.00 INC
£3,332.50 EXC

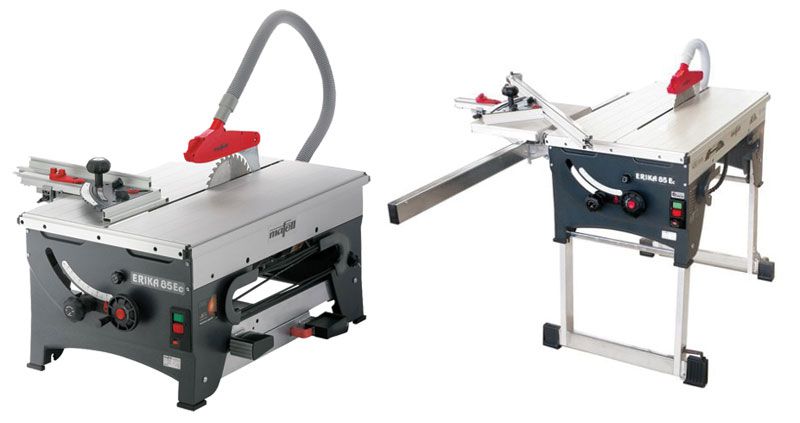

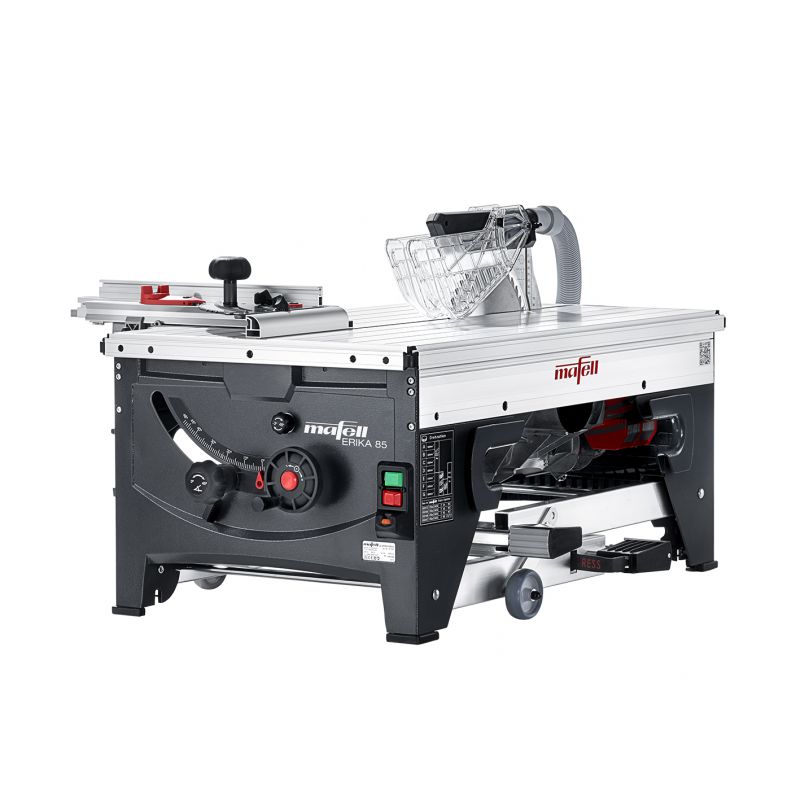

Mafell Erika 85Ec 240v Push & Pull Precision Saw System 971 921
(shown attached to optional Mafell M-class extractor)
Package: With Sliding Table + 2 x 1m Rails, 1000mm Fence Guide Extension & Extension Table
Description:
- As the world's first pull-push saw, the ERIKA has become the epitome of mobile sawing since its introduction. After almost 40 years of experience, the current generation is now endowed with everything that users expect from a modern pull-push saw.

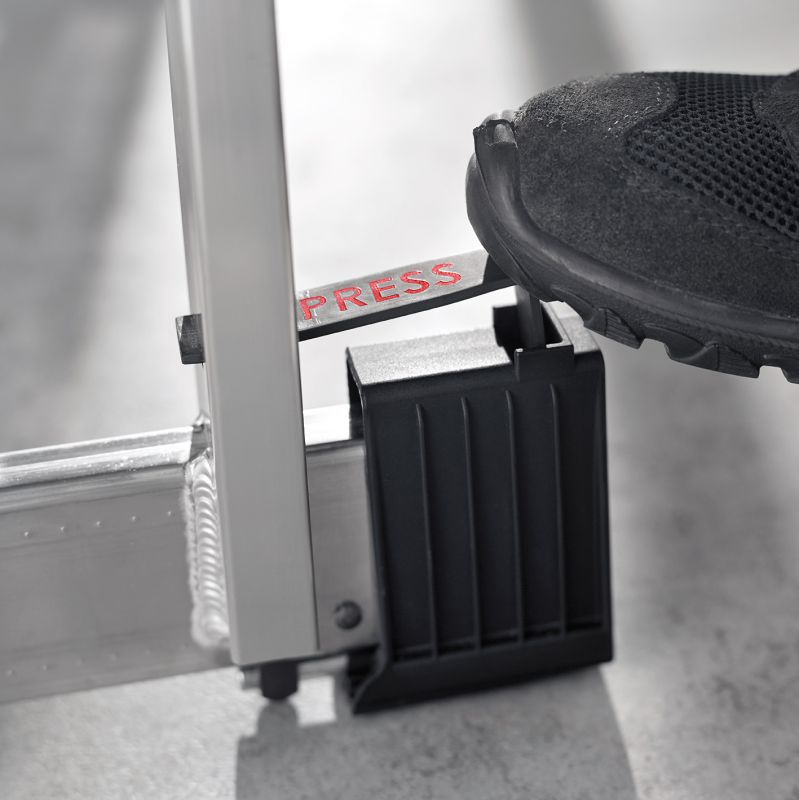

- The built-in /Quickstand\ sets the ERIKA on 4 stable aluminium legs within seconds. Protective rubber stoppers on the feet also prevent slipping or knocking.

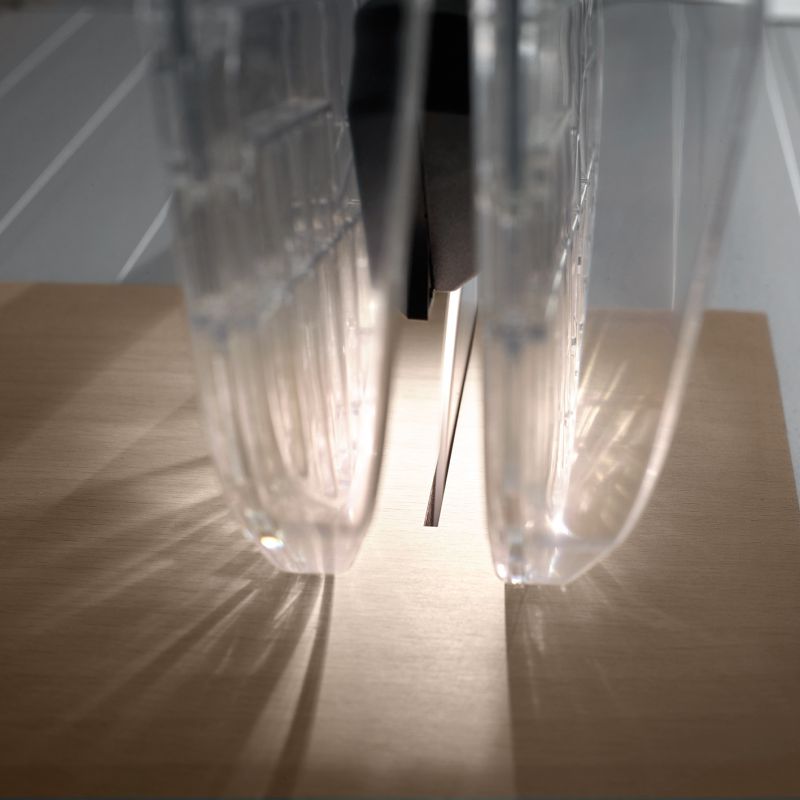

- The unique suction channel concentrates the sawdust and extracts it to the rear. Thanks to this new development, your dust extractor is used even more effectively. The result: clean work on a clean construction site! Operation of the ERIKA leaves no questions unanswered. Clearly designed operating elements are all logically arranged on the front of the machine!
- Thanks to the E-control electronic system and the corresponding MAFELL original saw blade, it is possible to process other materials in addition to wood, such as plastics or aluminium profiles.
- Further advantages of the ERIKA 85: Extremely stable table profile, tilt range from -3° to 48° , lowerable riving knife and maximum cutting length of 430 mm (16 15/15 inch).
Features:
- New type of suction channel revolutionises extraction - for less dust when working.
- Lightest pull-push saw in its class – for quick and easy transportation.
- Adjustable speed – for individual processing of wood, plastics or aluminum profiles.
- With voltage loss switch for protection against uncontrolled reconnection after a power interruption.
- The rear legs of the Erika are equipped with wheels for easy handling.
Applications
- Cross and rip cuts
- Circular saw bench functionality
- Bevel cuts up to 48°
- Compatible materials include solid wood, board materials, parquet and laminate flooring, aluminum profiles and plastics
Specifications:
- Cutting height - 1 – 85 mm
- Cutting height at 45° - 1 –59 mm
- Tilt range -3 - 48 °
- Cutting length 430 mm
- Table top dimensions 525 x 915 mm
- Working height without stand 415 mm
- Working height with stand 891 mm
- Nominal No. of strokes – no load 2.050 – 4.300 1/min
- Nominal power input 2.500 W
- Extraction connection diameter 58 mm
- Weight (with multi-purpose guide fence MFA) 40 kg
- Cutting speed 26,8 – 56,3 m/s
- Universal motor 230 V / 50 Hz
Supplied with:
- 1 TCT saw blade 250 x 2.8 x 30 mm (9 13/16 in.), AT, 40 teeth; Ref. No. 092465
- 1 Extension kit with wheels; Ref. No. 202889
- 1 MFA multi-purpose fence with angle locking; Ref. No. 207980
- 1 Push stick; Ref. No. 034901
- 1 Allen key 6 mm; Ref. No. 093081
- 1 Extraction set with 2 connectors; Ref. No. 093670
- 1 Clamping device; Ref. No. 038294
- 1 Fold-away support Quickstand
- 1 Mains cable 4 m (13.1 ft)
