Holzstar ADH 31C 308x225mm Planer/Thicknesser

Product Ref:

HOL5904031

Click & Collect in Store

Direct Delivery
From Manufacturer
Subject to availability

ONLY £2,099.95 INC

£1,749.96 EXC

£35.00 LOYALTY POINTS

Holzstar ADH 31C 308x225mm Planer/Thicknesser

Product Ref:

HOL5904031

Direct Delivery
From Manufacturer
Subject to availability

ONLY £2,099.95 INC

£1,749.96 EXC

Features & Specification

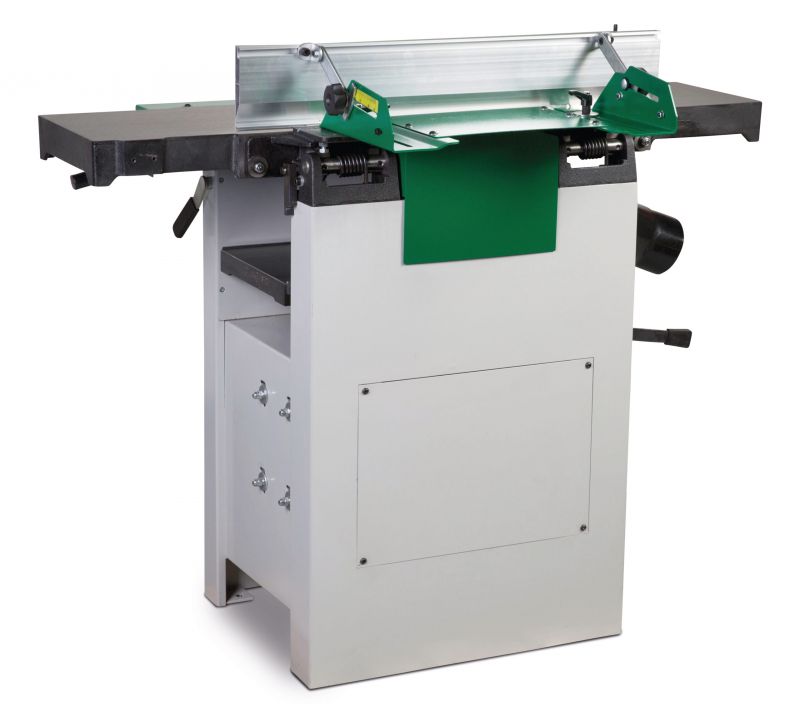

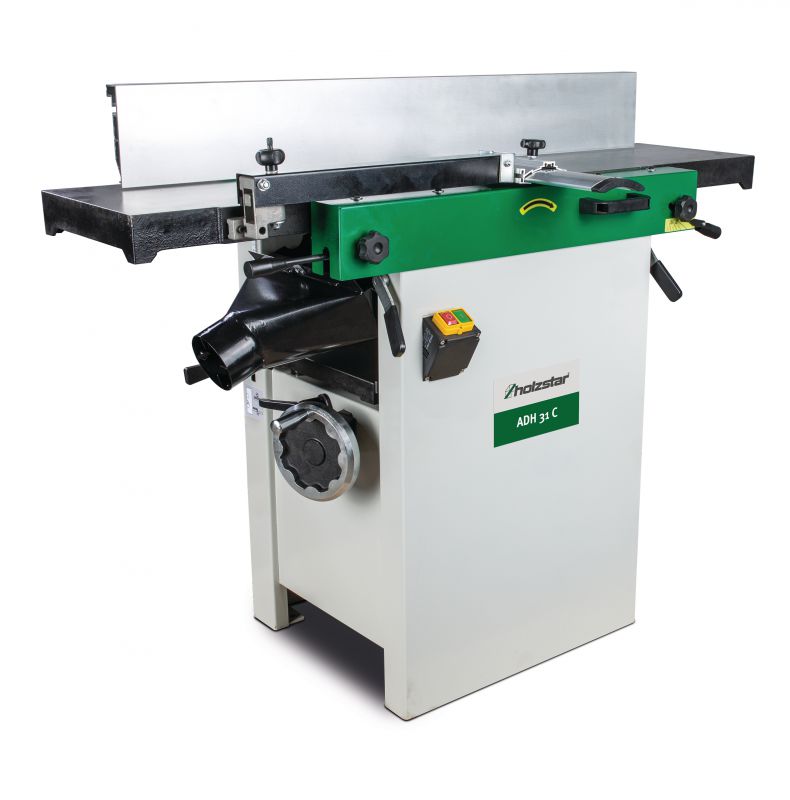

Holzstar ADH 31C 308x225mm Planer/Thicknesser

+ 3 x HSS planing knives + 2200W motor 230v 16 Amp

For angular joining (90 °) and straightforward dressing of solid wood boards, planks and strips
Simple and precise adjustment of the chip removal in dimensionally accurate thickness planing
Automatic workpiece feed
Easily adjustable aluminum dressing fence, tiltable from 90 ° to + 45 °
Large dimensioned dressing table made of ribbed die-cast aluminum
Large thick cast iron table with ground surface
Integrated, foldable chip extractor hood

Features:

Simultaneous opening of the dressing tables - Simultaneous folding up of the dressing tables with spring support for a quick and easy changeover for thickness planing in seconds
Fixed suction hood - Thanks to the fixed suction hood, it is no longer necessary to change the suction hose during the conversion - time-saving
The table height adjustment is easy and convenient via a handwheel

Specifications

Dimensions and weights

Length approx. 1300 mm
Width/depth approx. 720 mm
Height approx. 1010 mm
Weight approx. 210 kg

Electrical Data

Drive motor output 2,2 kW
Absorbed power drive motor 2.84 kW
Supply voltage 230 V
Mains frequency 50 Hz

Extraction port

Extraction port diameter thickness 100 mm
Extraction port diameter joints 100 mm

Feed

Speed 7 m/min

Jointing

Max. cutting depth 3 mm
Planing stop pivoting range 90 – 45 °

Planing knife shaft

Type Strip planer blade shaft
Number of planing blades 3 St
Speed 5200 min¯¹
Max. planing width 308 mm

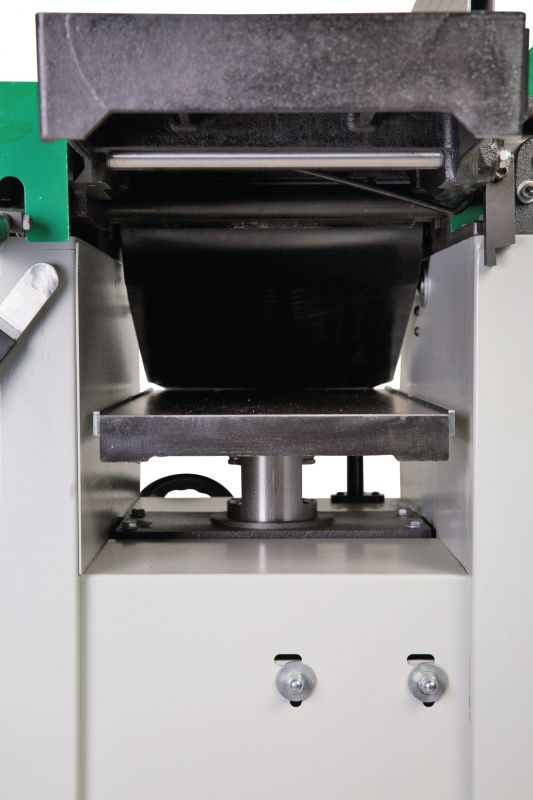

Thickness

Working height min. 5 mm
Working height max. 225 mm
Max. cutting depth 3 mm

Supplied with:
