Holzmann BBM35PNEU 230V Hinge Slot Drilling Machine

Product Ref:

HLZBBM35PNEU

Click & Collect in Store

Direct Delivery
From Manufacturer
Subject to availability

ONLY £959.99 INC

£799.99 EXC

£8.00 LOYALTY POINTS

Holzmann BBM35PNEU 230V Hinge Slot Drilling Machine

Product Ref:

HLZBBM35PNEU

Direct Delivery
From Manufacturer
Subject to availability

ONLY £959.99 INC

£799.99 EXC

Features & Specification

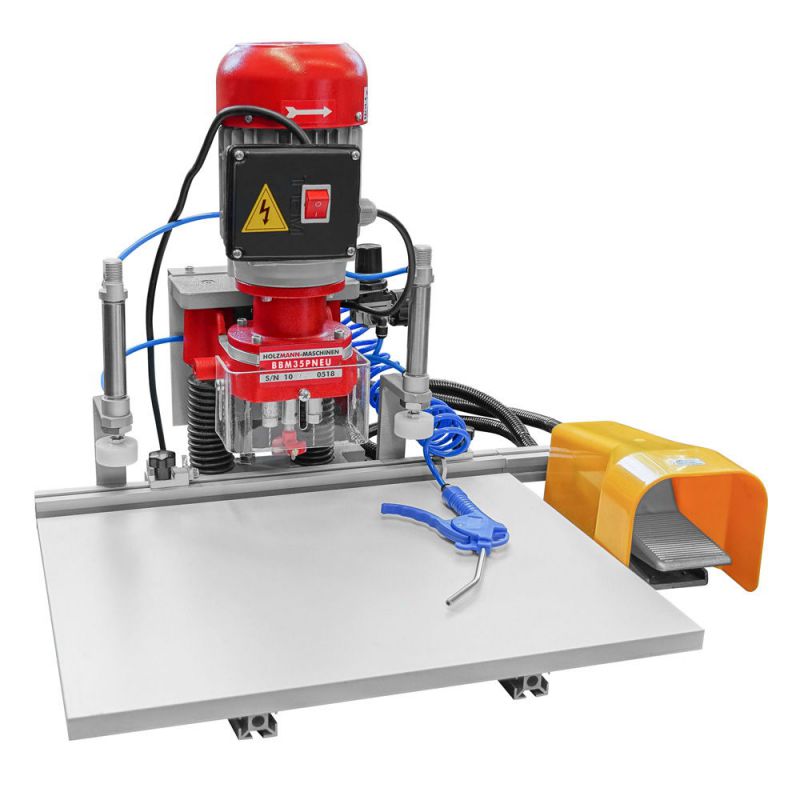

Holzmann BBM35PNEU 230V Hinge Slot Drilling Machine

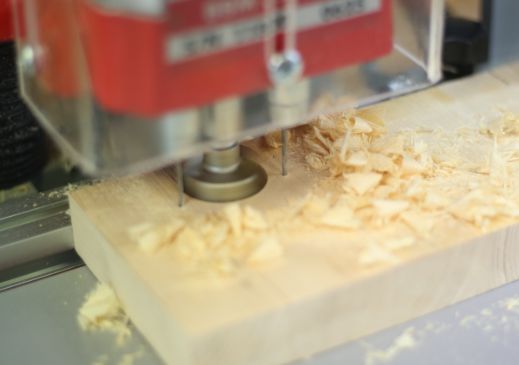

The Holzmann BBM35PNEU 230V hinge slot machine is a robust and precise solution for drilling concealed hinge holes in wooden workpieces. Featuring a pneumatic feed system, it ensures smooth operation and consistent drilling results with minimal operator effort.

Designed around the widely used Blum drilling pattern, this machine is perfect for cabinet makers, furniture builders, and advanced DIY users. With the option to convert to a Hettich drilling pattern using an optional head, it offers flexibility for different hinge systems.

Powered by a durable 750 W motor running at 2800 rpm, the BBM35PNEU delivers clean, accurate drilling up to 20 mm deep. Its compact footprint and solid construction make it easy to integrate into smaller workshops while still offering professional-level precision and reliability.

Key Features

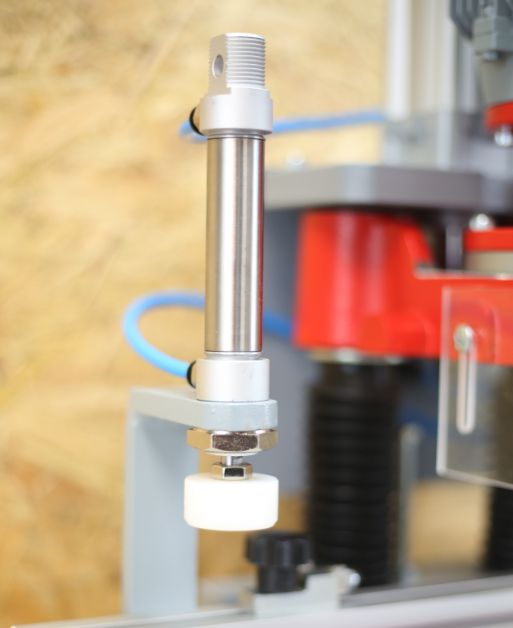

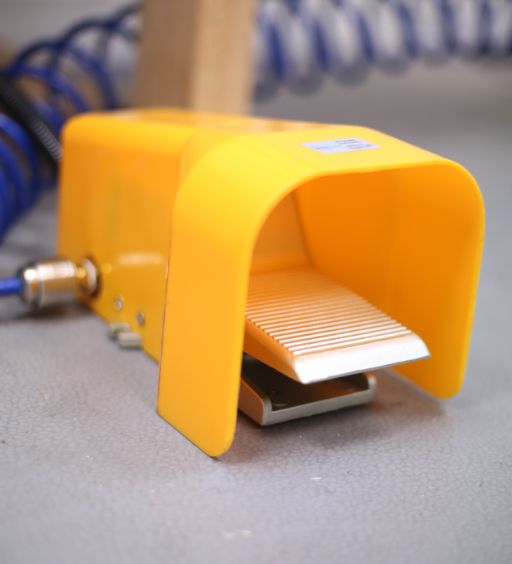

Pneumatic feed system for smooth, controlled drilling

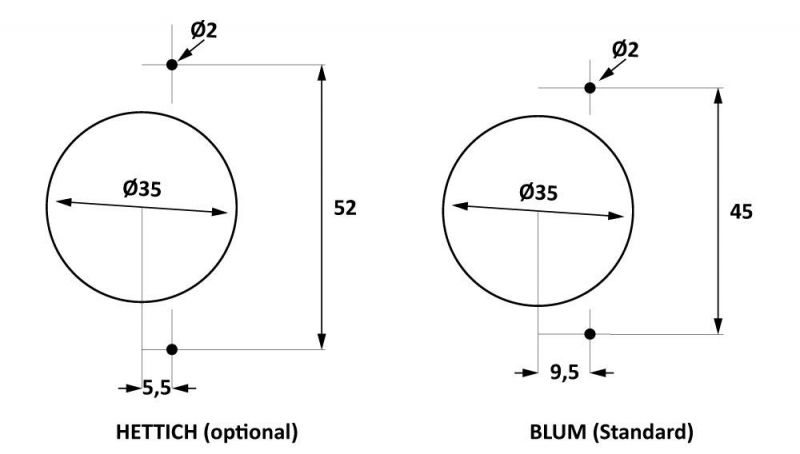

Pre-set drilling pattern for Blum hinges
Optional Hettich drilling head available for pattern conversion

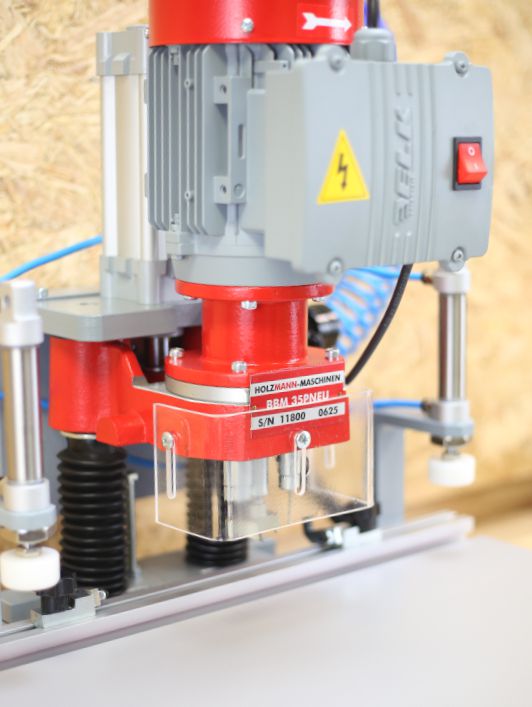

Powerful 750 W motor for consistent performance

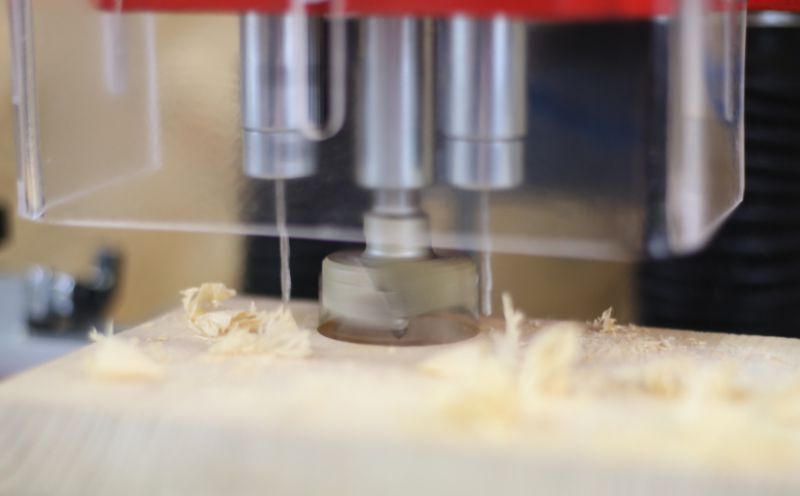

35 mm hinge cutter for standard concealed hinges
2 mm side drills for accurate alignment
Compact tabletop design for small workshops
Ideal for hobby craftsmen and small professional businesses

Contents

Holzmann BBM35PNEU hinge slot drilling machine
Integrated 35 mm hinge cutter
Side drilling units (2 mm)
Operating instructions

Specifications

Model Holzmann BBM35PNEU
EAN 9120058376948
Voltage 230 V / 50 Hz
Motor Power (S1) 750 W
Speed 2800 min⁻¹
Hinge Cutter Diameter 35 mm
Side Drill Diameter 2 mm
Max. Drilling Depth 20 mm
Max. Spindle–Table Distance 80 mm
Table Size 500 × 350 mm
Min. Workpiece Length 180 mm
Net Weight 26 kg
Gross Weight 28 kg
Packaging Size (L×W×H) 530 × 530 × 555 mm
