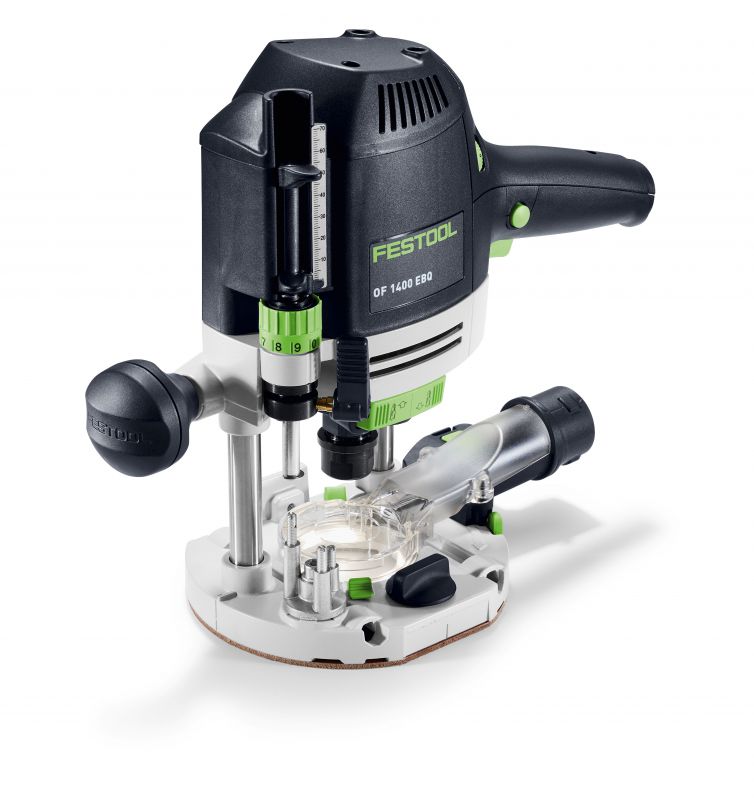

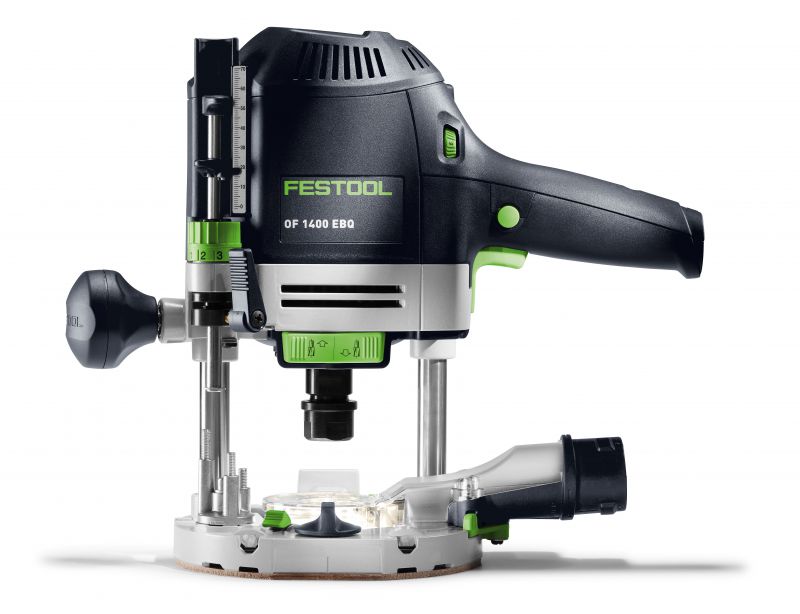

Festool 578942 240V Router OF 1400 EQ-Plus 1/2" Router With SYS3 M 337 Systainer Case

Festool 578942 Router OF 1400 EQ-Plus 240V

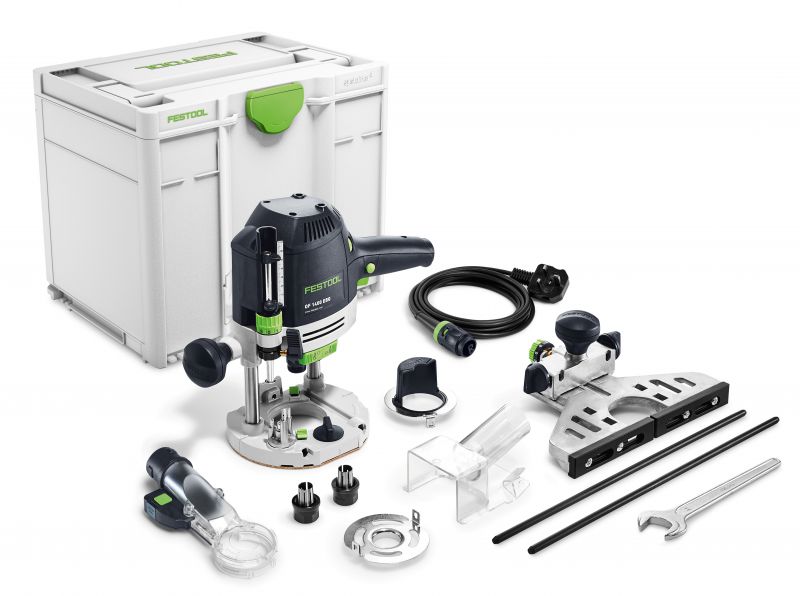

including:

• extraction bonnet with light module LM-OF 1400,
• Ø 8 mm clamping collet,
• Ø 12 mm clamping collet,
• side stop with fine setting,
• copying ring Ø 30 mm,
• extraction hood,
• top,
• chip deflector,
• open ended spanner,
• WAF 24,
• plug it-power cable (4 m),

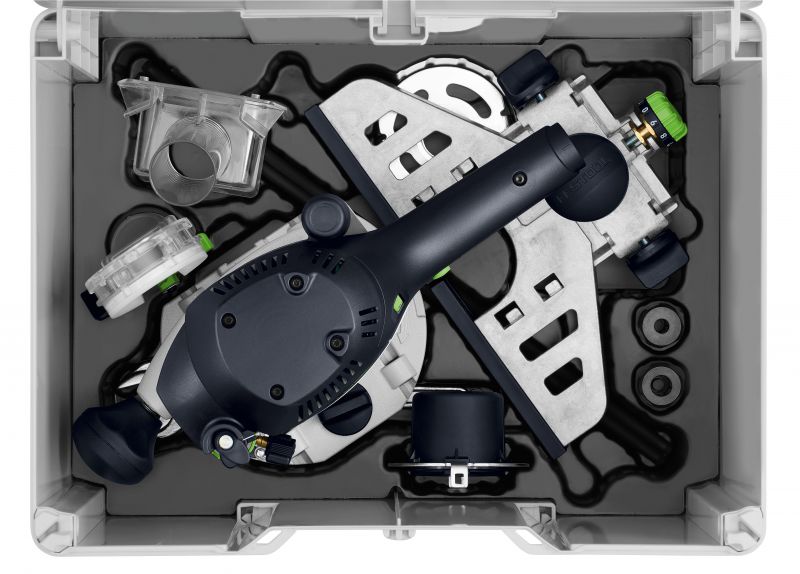

• Systainer SYS3 M 337

Specifications

• Power consumption 1400 W;
• Idle engine speed 10000 - 22500 min⁻¹;
• Clamp diameter 6.00 - 12.70 mm;
• Routing stroke 70.00 mm;
• Routing depth fine adjustment range 8.00 mm;
• Bench opening 63.00 mm;
• Dust extraction connection diameter 27/36 mm;
• Cable length 4.00 m;
• Product weight without accessories 4.60 kg;
• Transport weight incl. accessories 9.3 kg;
• Drive type Mains
• Routing: Uncertainty (vibration) K 1.50 m/s²;
• Routing: Uncertainty (noise) K 1.50 dB;
• Routing: Total vibration average, Ah 2.50 m/s²;
• Routing: Standards series EN 62841-2-17;
• Routing: A-weighted sound pressure level, LpA 98.00 dB(A);
• Routing: A-weighted sound power level, LWA 106.00 dB(A)

Power and ease of operation in perfect harmony. The OF 1400 is a handy and versatile router: weighing just 4.5 kg and with a 70 mm routing stroke, it is perfect for countersinking fittings and for precise work with routing templates. The LED light ring in the extraction bonnet ensures optimum visibility of your workpiece. Thanks to clever details, extensive equipment and versatile accessories, you can master almost any routing task - precisely and efficiently. Stable: Torsion-resistant construction with guide column clamped on both sides for optimum routing results.Practical: Tool-free change of the copying rings and travelling soles for different applications.

Convenient and quick cutter change: thanks to the spindle stop with ratchet principle, you don't need to move the open-end spanner.

Optimum visibility: thanks to the extraction bonnet with integrated LED light ring.

Precise: Simple and 1/10 mm accurate fine adjustment of the milling depth - with a large adjustment range of 20 mm.

Clean: Up to 99 % extraction with chip catcher and extraction bonnet when routing edges.

Safe: Quick brake and MMC Electronic for material-specific work and speed regulation. Rounding, chamfering, rebating and profiling edges

Routing circles and cut-outs with the multi-routing template

Grooving rear panels or recessing dovetail batons with the guide system

Routing with the routing aid to fit Schallex, draft excluders or espagnolettes

Routing mineral material (max. cutter Ø 45 mm) High precision with 70 mm milling stroke.

Sophisticated details for greater convenience.System versatility for every application. The column clamping on both sides makes the router extremely torsion-resistant and ensures precise routing results. This is particularly advantageous when recessing fittings or routing with routing templates.

Thanks to the routing depth adjustment with integrated fine adjustment, the routing depth can be set quickly. The spindle stop with ratchet function offers you more convenience when changing cutters. The LED light in the extraction bonnet ensures optimum visibility - it illuminates your work area perfectly.

Impressive variety of applications thanks to our versatile accessories from the router system to the template and hole line system through to the jointing system.

• Faultless precision
• 70 mm routing stroke
• Precise fine adjustment
• Lighting all the way around
• 99% dust extraction
• Easy handling
• Parallel side fence attached in an instant
• Cutter replacement in seconds
• Changes without using tools
• For quick device changeover
• Quick-acting brake

Versatile thanks to the system The OF 1400 is clamped to both guide columns. This means that the router is secured in place with absolute torsional rigidity. The routing result is perfect. Time-consuming rework is a thing of the past.Because of the long 70 mm routing stroke, working with large routing depths and templates or making recesses for fittings is particularly easy.

The OF 1400 router has a precise depth adjuster. It takes just a few seconds and minimal effort to finely adjust the routing depth accurate to a tenth of a millimetre using the dial.

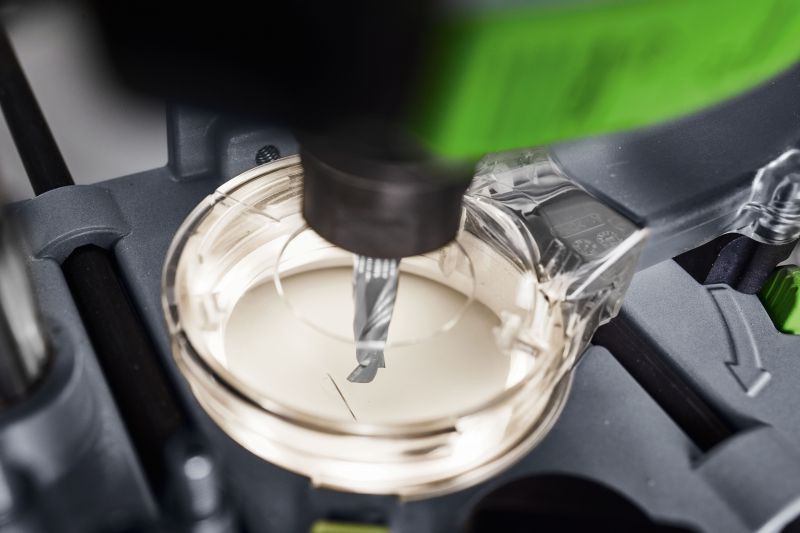

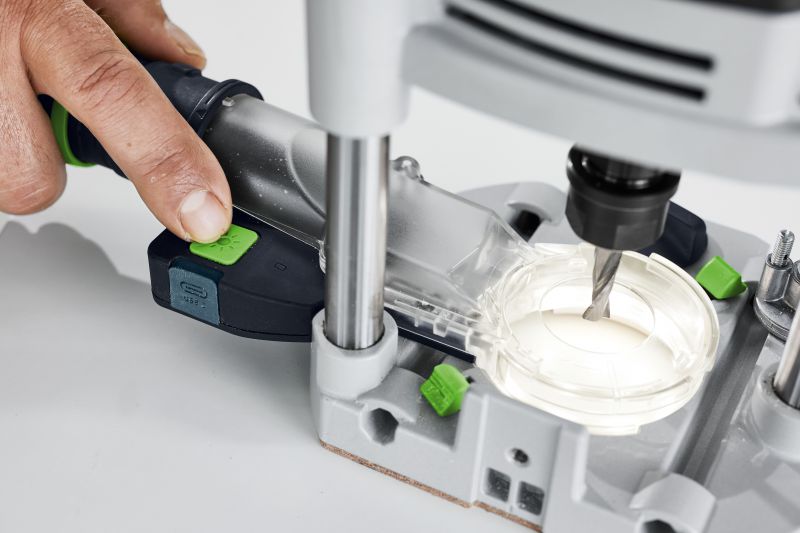

The extraction bonnet with integrated LED light ring ensures clean working conditions and the best view of the milling area - shadow-free and precise. It is easy to fit and the LED light can be conveniently charged using the USB-C cable (not included).

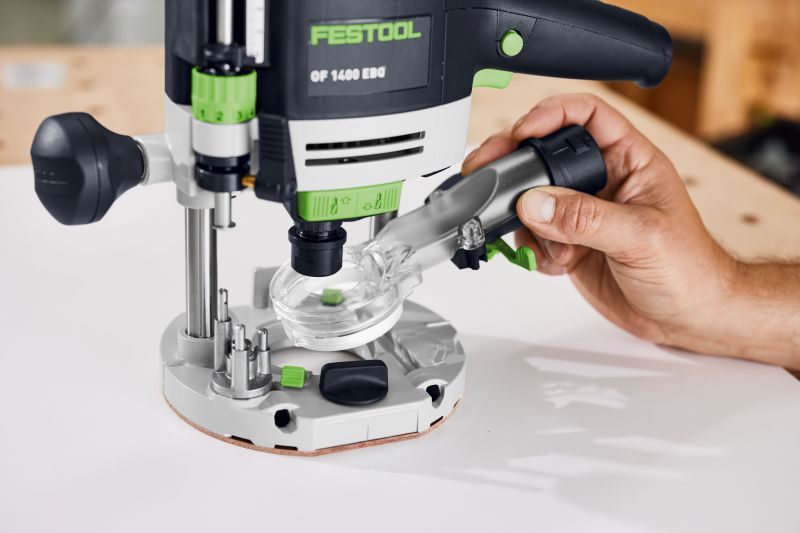

The unique chip deflector ensures efficient dust extraction and guarantees maximum suction power when routing edges in combination with the dust extraction attachment and a Festool mobile dust extractor.

You can easily reach the on/off switch and the infinitely variable speed control without having to reach round. The ergonomically shaped bar handle ensures that the OF 1400 is guided safely and precisely.

Both guide rods are fixed in place at the same time via a single rotary knob. The parallel side fence can thereby be attached and detached in no time at all.

The convenient spindle stop with rocker and ratchet principle allows you to change the router at the speed of light without removing the key.

You can change the copying ring without tools. One click to release the ring – and replacing it is just as straightforward.

Thanks to the plug-it system, the device can be changed quickly – directly via the cable and not via the socket or extractor: One cable for all devices. And even if the cable breaks, it can be replaced quickly without any problems.

The quick stop brake ensures optimal safety when routing and the OF 1400 comes to a stop in seconds.

With routing templates, side stop, guide rail adapter and extraction solution, Festool offers you versatile accessories that expand the applications of your OF 1400. Thanks to extensive collet accessories up to 12.7 mm, you can use a large selection of router bits - so you are ideally equipped for every application.
