Festool 578738 Cordless plunge-cut saw TSC 55 KEB-Basic
**********D&M PACKAGE**********

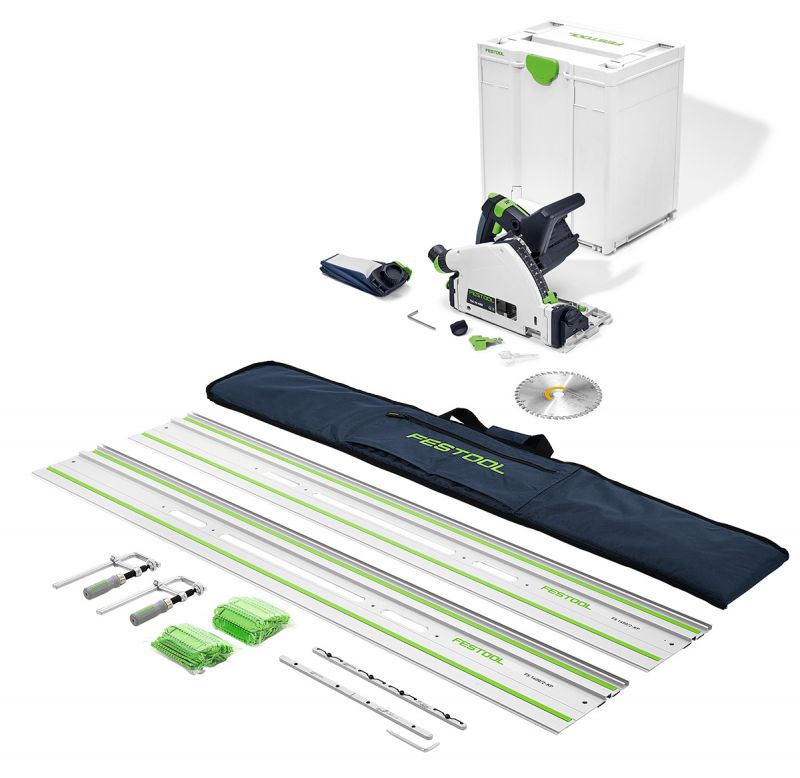

CONSISTS OF:
1 x TSC 55 KEB-Basic Plunge Saw
1 x SYSTAINER SYS3 M 337
2 x 577043 FS1400/2KP 1.4m Guide rails
1 x Connecting piece FSV/2 (2 Pieces)
1 x Guide rail storage bag
1 x FSZ 120 Pair of rail clamps
Changes to the items included in delivery: TSC 55 K cordless plunge-cut saw
Our masterpiece. Decisively improved. Now with unique KickbackStop.
Often, even just a millisecond is crucial: The kickback is the most common cause of serious injuries when using a plunge-cut saw. Our unique KickbackStop therefore stops the saw blade of our cordless plunge-cut saw in the blink of an eye, and so not only protects your workpiece but also minimises the risk of injury to your hands. In addition, this now allows users to make powerful, precise cuts at up to twice the speed with an extended battery range. When combined, our new generation of saw blades allows for maximum cutting performance and perfect cutting quality. The sawing system is rounded off with clever system accessories, such as guide rails, an angle stop, splinter guard and saw table.
- The KickbackStop reduces the risk of injury from kickback when sawing or plunging the tool into the workpiece
- Concentrated torque and up to twice as fast work progress with an increased saw blade service life
- Brushless EC-TEC motor combined with lithium-ion batteries for maximum cutting power
- The KickbackStop can be deactivated for individual cuts
- Top-class sawing system thanks to a variety of accessories
Main applications
- Precise circular in materials up to 55 mm thick
- Cutting interior doors to length using guide rail and circular saw
- Cutting recesses in doors and kitchen worktops
- Manufacturing expansion joints in parquet flooring and false joints
- Cutting chipboard to size
The scope of delivery for the TSC 55 K has been adjusted in line with the launch of the new cordless plunge-cut saw TSC 55 KS. New: includes dust collection bag SB/2-TSC/HKC and attachable angle connector.
Supplied with:
- circular saw blade WOOD FINE CUT HW 160 x 1, 8 x 20 WD42,
- splinterguard,
- Flag window; vision panel,
- chip collection bag,
- hex key,
- WAF 5,
- Systainer SYS3 M 437
Specifications:
- Battery voltage (rated voltage): 2 x 18 V
- Idle engine speed: 2650 - 3800/5200 min⁻¹
- Diameter of the saw blade: 160.00 mm
- Angular range: -1 - 47 °
- Cutting depth: 0 - 55 mm
- Cutting depth 45°: 43 mm
- Dust extraction connection diameter: 27/36 mm
- Product weight without accessories: 3.60 kg
- Transport weight incl. accessories: 7.80 kg
- Drive type: Battery
Noise and vibration values
- Sawing metal: A-weighted sound pressure level, LpA: 96.00 dB(A)
- Sawing metal: Total vibration average, Ah: 2.50 m/s²
- Sawing metal: Uncertainty (vibration) K: 2.00 m/s²
- Sawing metal: A-weighted sound power level, LWA: 104.00 dB(A)
- Sawing metal: Standards series EN: 62841-2-5
- Sawing metal: Uncertainty (noise) K: 1.50 dB
- Sawing wood: Total vibration average, Ah: 2.50 m/s²
- Sawing wood: A-weighted sound pressure level, LpA: 96.00 dB(A)
- Sawing wood: Uncertainty (noise) K: 1.50 dB
- Sawing wood: A-weighted sound power level, LWA: 104.00 dB(A)
- Sawing wood: Standards series EN: 62841-2-5
- Sawing wood: Uncertainty (vibration) K: 2.00 m/s²
