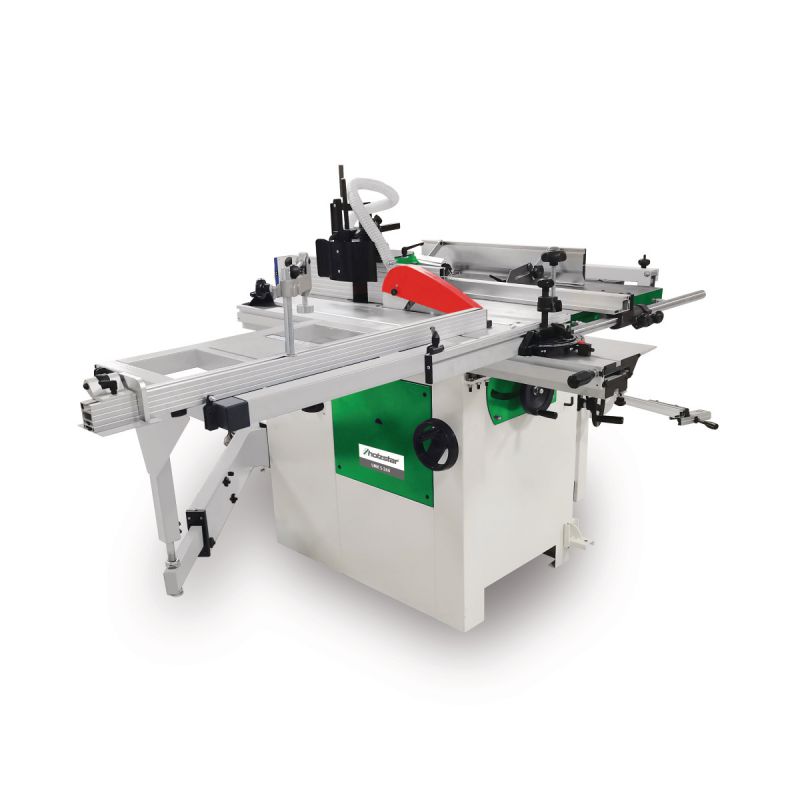

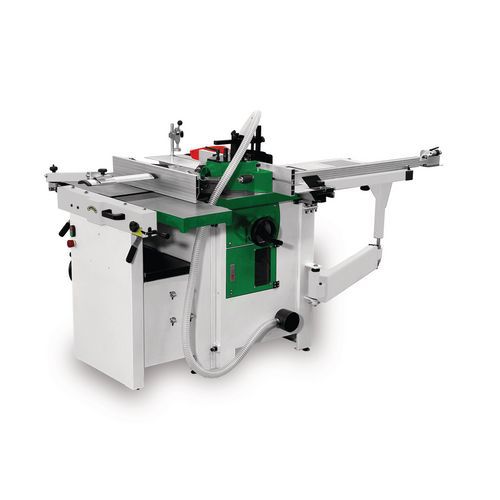

Holzstar UMK 5-260 5 240V Operation Universal Combination Machine

Product Ref:
HOL5946025
Holzstar
Special
      Click & Collect in Store
Direct Delivery
From Manufacturer
Subject to availability
ONLY £3,599.00 INC
£2,999.17 EXC
LOGIN TO ADD FAVOURITES
£59.98 LOYALTY POINTS
Holzstar UMK 5-260 5 240V Operation Universal Combination Machine
Product Ref:
HOL5946025
Holzstar
Direct Delivery
From Manufacturer
Subject to availability
ONLY £3,599.00 INC
£2,999.17 EXC
£3,599.00
INC
Features & Specification

Holzstar UMK 5-260 5 240V Operation Universal Combination Machine

Compact multiple combination for planing/thickness planing, sawing, routing and optionally with slot drilling device

  • Robust cast iron machine table enables precise work
  • Function selection via rotary switch
  • Practical traveling device available as an accessory

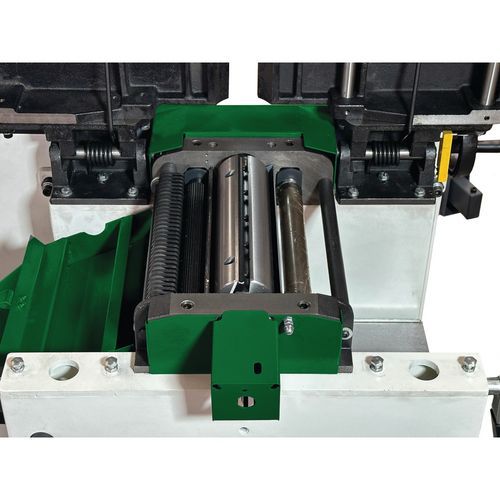

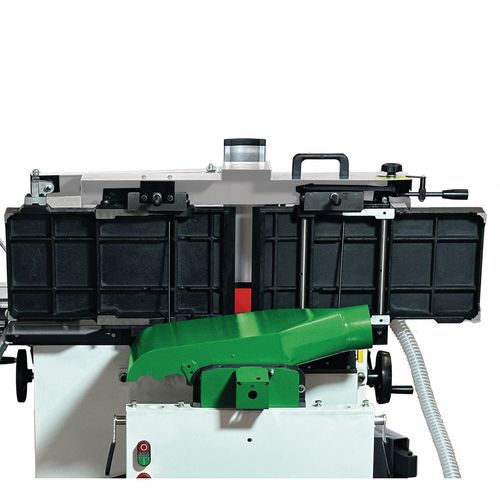

Surface planer/thickness planer

  • Thicknessing planer table adjustment via handwheel
  • Rubberized pull-out roller protects the surface of the workpiece during thickness planing
  • Dressing and thicknessing table made of gray cast iron with ground surface
  • Strip cutterblock with three HSS knives
  • Aluminum planer fence can be tilted by 45

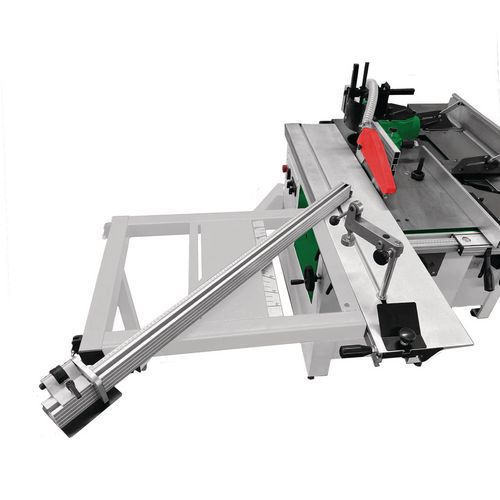

Circular sizing saw

  • Circular saw blade can be tilted up to 45
  • Table extension arm with aluminum cross-cut fence for panels and large workpieces
  • Including cast aluminum workpiece clamp and adjustable micro fence
  • Aluminum sliding carriage with 1300 mm length
  • Aluminum rip fence with fine adjustment



Table milling machine

  • Rigid milling spindle
  • Spindle height adjustable by 110 mm



Slot drilling device

  • Available as accessories
  • Wescott drill chuck 3 - 16 mm

Specifications



Circular saw unit

  • Trimming length 1300 mm
  • Saw blade angle 90 – 45 °
  • Max. cutting height at 90° 78 mm
  • Max. cutting height at 45° 63 mm
  • Diameter of (main) saw blade 254 mm
  • (Main) saw blade speed 4000 min¯¹

Dimensions and weights

  • Length approx. 2200 mm
  • Width/depth approx. 1330 mm
  • Height approx. 1300 mm
  • Weight approx. 362 kg

Electrical Data

  • Input power saw 2.2 kW
  • Input power planer 2.2 kW
  • Input power moulder 1.5 kW
  • Supply voltage 230 V
  • Mains frequency 50 Hz

Extraction port

  • Suction port diameter cutter 100 mm
  • Saw blade protection extraction port diameter 30 mm
  • Extraction port diameter thickness 100 mm

Feed

  • Speed 7 m/min

Jointing

  • Infeed table width 260 mm
  • Infeed table length 1120 mm
  • Max. cutting depth 4 mm

Milling cutter diameter max.

  • not lowerable 160 mm

Milling spindle

  • Mandrel diameter 30 mm
  • Usable length 105 mm
  • Height adjustment 110 mm
  • Speed(s) 1400/4000/6000/9000 min⁻¹

Noise emission

  • Sound pressure level idle 80 dB(A)
  • Sound pressure level load 92 dB(A)

Planing knife shaft

  • Diameter 70 mm
  • Number of planing blades 3 St
  • Speed 5500 min⁻¹

Sliding carriage and table

  • Sliding table length 1300 mm
  • Sliding table width 238 mm
  • Table length 920 mm
  • Table width 410 mm
  • Table height 850 mm

Thickness

  • Table length 545 mm
  • Table width 258 mm
  • Working height min. 5 mm
  • Working height max. 225 mm
  • Max. cutting depth 4 mm

VPE 1

Scope of delivery

  • Eccentric clamp
  • Angle fence with aluminum profile and hold-down device
  • 1x saw blade 254x30x3 mm Z36
  • 3x planer blade 250x30x3 mm
