Details
|
|
STARTRITE STM25 HEAVY DUTY MORTICER 240V WITH BASE
The STM25 is suitable for the small professional workshop or educational environment.
A heavy, robust machine which has been engineered to provide accurate performance on a daily basis in an industrial environment. Weighing in at 160kg, the STM25 offers the very best in morticers and will cope with the rigors of heavy use.

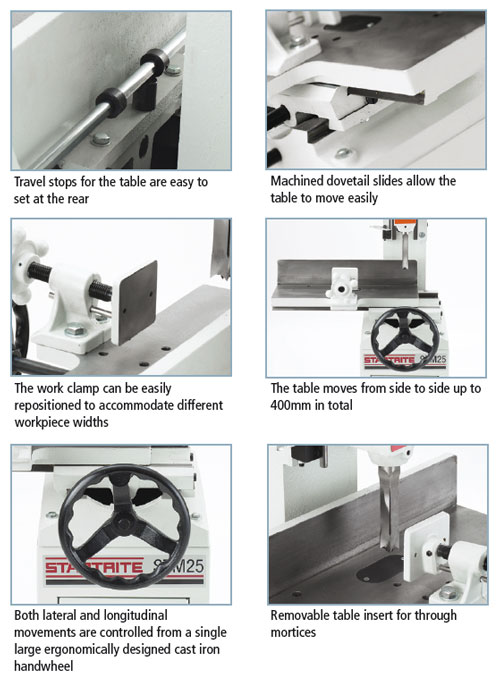

The STM25 can cope with a maximum chisel capacity of up to 1” and the finely ground table and back fence provide a work base for precision morticing. The simple mechanism of the twin depth stop can be easily adjusted to achieve accurate depths of cut. Machine faced dovetail slides allow full movement of the table from front to back and left to right.
The STM25 also features travel stops for repetitive work and a heavy duty, cast iron table clamp to hold the workpiece securely. Available in single or three phase with a 1hp motor, this machine is ideal for the professional user or even the dedicated enthusiast.
Specification:
-
Max. chisel size softwood: 25 mm
-
Max. chisel size hardwood: 19 mm
-
Timber capacity: 225 x 180 mm
-
Stroke of chisel head: 125 mm
-
Table movement longitudinal: 400 mm
-
Table movement lateral: 90 mm
-
Motor: 1 Hp
-
Weight: 160 kg
-
Dimensions: 1705mm (H) x 540mm (W) x 670mm (D)
|
|
