Catalogue 18 Page: 303
SCHTS4020DEAL3
|
SCHEPPACH TS4020VR 240V 12INCH PRECISION TABLE SAW, REAR TABLE, RIGHT HAND EXTENSION & 2M SLIDING CARRIAGE & SCORING ATT
|
|
|
£3,549.00 INC VAT
£2,957.50 EXC VAT
SCHTS4020DEAL3
|
|
|
|
|
|
|
|
|
Similar products can be found in these categories:
|
Machinery
>
Saw Benches
>
Panel Saws/Table Saws
Scheppach Machinery
>
Scheppach TS4020CI Table Saw
Scheppach Machinery
>
Scheppach TS4020VR
|
| This Promotion Includes The Following Items |
|
1 X SCHTS4020VR
|
SCHEPPACH TS4020VR 240V 12INCH PRECISION TABLE SAW WITH SCORING FITTED
|
|
1 X SCH54630702
|
SCHEPPACH 5463 0702 2M SLIDING TABLE FOR TS4020Ci ONLY
|
|
1 X SCH54630706
|
SCHEPPACH 5463 0706 TABLE WIDTH EXTENSION FOR TS2500Ci & TS4020Ci ONLY
|
|
|
Details
|
|
SCHEPPACH TS4020CI 240V 12INCH PRECISION TABLE SAW, REAR TABLE, RIGHT HAND EXTENSION & 2M SLIDING CARRIAGE & SCORING ATTACHMENT
(Please note the scoring attachment is a factory fit option only and can't be retrofitted)
THIS PACKAGE DEAL VERSION INCLUDES THE SCORING BLADE FITTED AS STANDARD.
ts 4020 – the ultimate circular sawbench for precision and versatility.
For 20 years scheppach have been producing the 4000 series of sawbench for the professional user. This experience has allowed us to bring to the industry probably the best sawbench in its class, the all new ts 4020.
At first glance, discerning customers will recognize the overall quality built into this machine. Innovative design and patented technical features elevate the ts 4020 above the competition and make it a must have machine for the craftsman who requires only the best.
The ts 4020 further enhances scheppach’s reputation for producing high quality, precision machines due to the welded steel, torsion-resistant frame giving this sawtable a really solid feel. Two seperate handwheels operate the rise, fall and tilting action of the sawblade, which has an above average cutting depth of 110 mm and is powered by a powerful 3.5 HP induction motor (5.4 and 6.5 HP options available).
Supported with additional sliding table carriage options and table width extension, the basic saw can be fitted out to aid the accurate sizing of sheet material. A maximum cutting capacity of 1,400 mm x 1,100 mm make it ideal for handling 8’ x 4’ panels. For those who handle heavier than average panels, a hinged swivel support arm for the sliding table carriage is available.
Especially operator friendly: a foot recess has been created to allow the operator a more comfortable working position. An optional wheel assembly when fitted will also facilitate easy movement for the workshop with limited space.
In all, the ts 4020 impresses in every department, but its only in use that the true value and benefit of this machine will be recognized.
The 120mm diameter optional scorer operates with the standard 12” saw blade. No labour work - no change of the main saw blade from 12” to 10” like some saws. The scoring saw blade tilts (when necessary) with the main saw blade. The scoring attachment is independently powered a 1.1hp motor.
(Factory fit only)
Specifications:
-
L/W/H mm: 1,350/760/1,110
-
Table size mm: 805 x 680
-
Table height mm: 850
-
Sliding carriage mm: 440 x 670
-
Sawblade Ø mm/teeth: 315/48
-
Height adjustment mm: 0 - 110
-
Tilting range °: 0 - 45
-
Speed rpm: 4,000
-
Cutting speed m/sec: 66
-
Ripping fence length mm: 800
-
Angle fence °: 2 x 60
-
Suction connector Ø mm: 100
-
Weight approx. kg: 215
Cutting width or depth with:
-
ripping fence mm: 390
-
table width extn. mm: 1100
-
angle fence mm: 260
-
sliding carriage mm: 800/1,400
-
Cutting depth at 90°/45° mm: 110/77
|
|
Accessories
|
|
|
; "SCHEPPACH TS4020VR 240V 12INCH PRECISION TABLE SAW, REAR TABLE, RIGHT HAND EXTENSION & 2M SLIDING CARRIAGE & SCORING ATT")

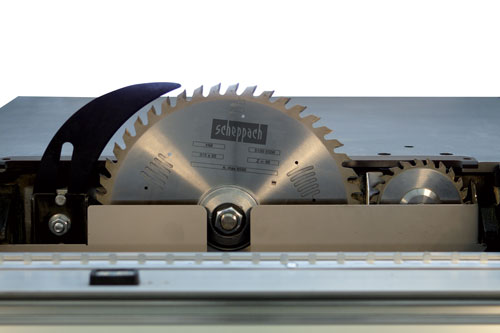

; "Click For Bigger Image: Scoring Attachment 1")
